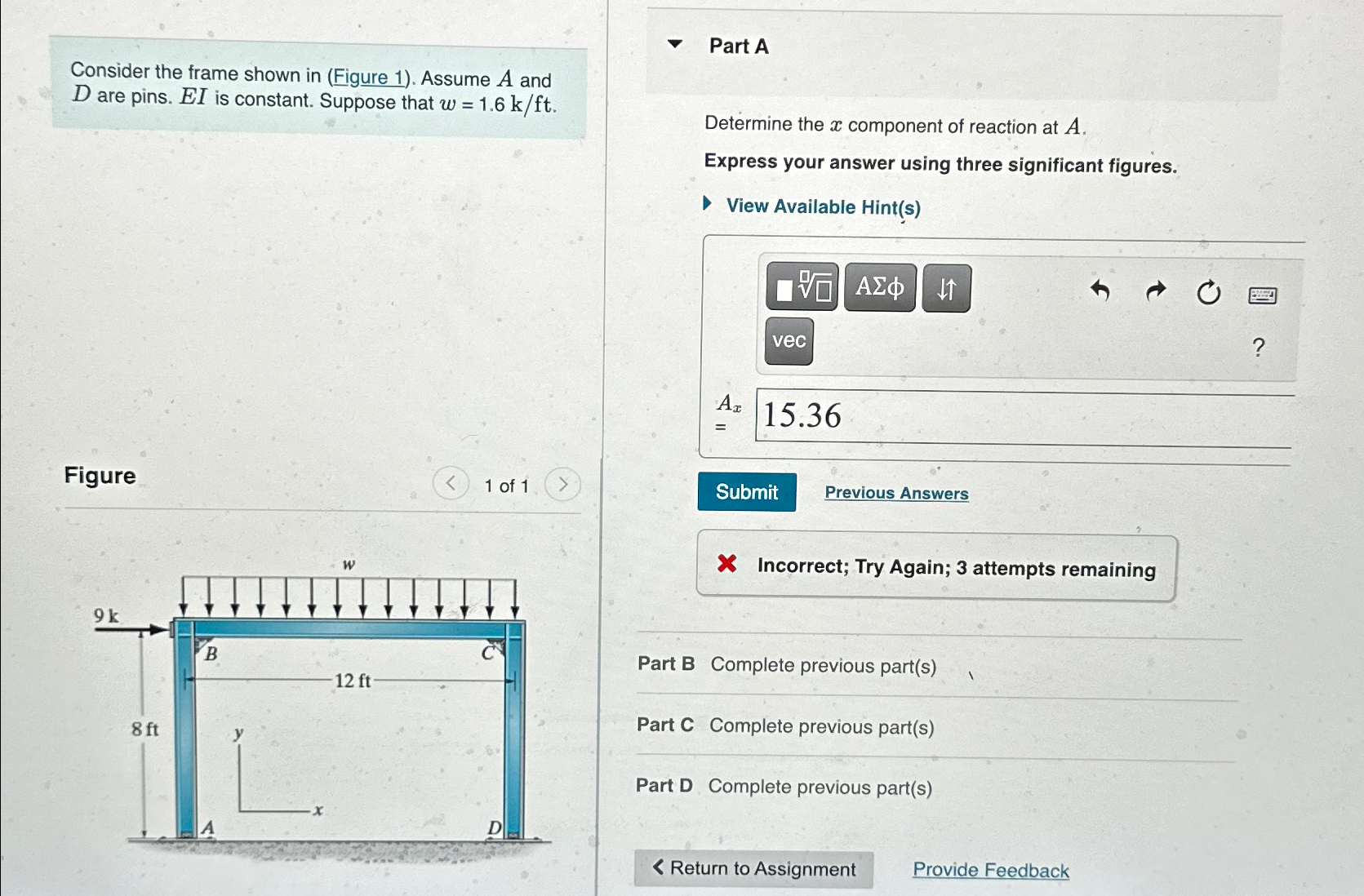

Question: Consider the frame shown in ( Figure 1 ) . Assume A and D are pins. E I is constant. Suppose that w = 1

Consider the frame shown in (Figure 1). Assume A and D are pins. EI is constant. Suppose that w=1.6kft.
Figure
1 of 1
Part A
Determine the x component of reaction at A.
Express your answer using three significant figures.
View Available Hint(s)
Previous Answers
Incorrect; Try Again; 3 attempts remaining
Part B Complete previous part(s)
Part C Complete previous part(s)
Part D Complete previous part(s)
PLEASE DETERMINE THE X AND Y COMPONENTS AT A AND B
Consider the frame shown in ( Figure 1 ) . Assume

Step by Step Solution

There are 3 Steps involved in it
