Question: Consider the frame shown in ( Figure 1 ) . Suppose that F 1 = 1 4 k N Part A Determine the x and

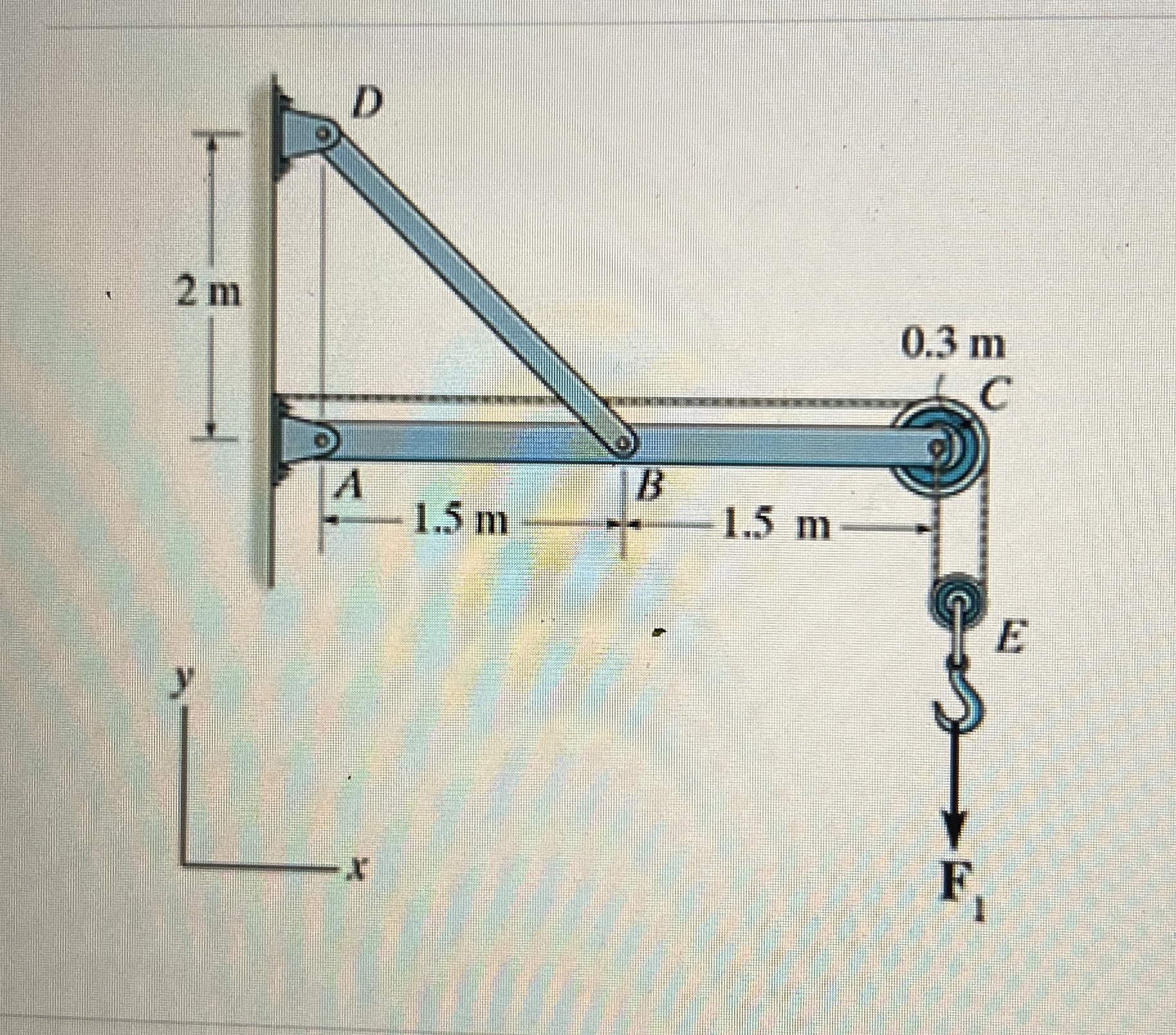

Consider the frame shown in (Figure 1). Suppose that F1=14kN
Part A
Determine the x and y components of force at pin A.
Express your answers in kilonewtons to three significant figures separated by a comma.
Part B
Determine the x and y components of force at pin D.
Express your answers in kilonewtons to three significant figures. Enter your answers separated by a comma
Consider the frame shown in ( Figure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
