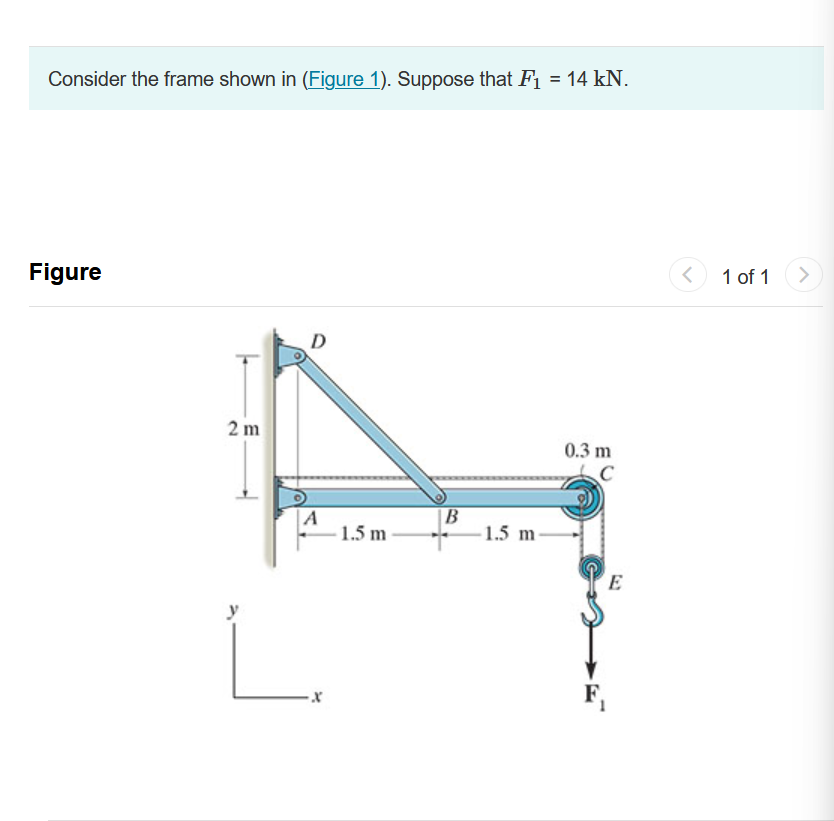

Consider the frame shown in $($Figure $1).$ Suppose that F$\_(1)=14$kN$.$

Figure Part A

Determine the x and y components of reaction at pin A using scalar notation.

Express your answers in kilonewtons to three significant figures separated by a comma.

View Available Hint$($s$)$

Hint $1.$ How to approach the problem

Consider equilibrium conditions of member AC$,$ including the pulley at C as its part. Forces acting on this

member are: reaction at A$,$ internal force F$\_($BD$)$ directed along BD$,$ downward tension force of cable T at

the axis of the pulley at C$,$ and two tension forces in the cable applied to the pulley at C$.$

A$\_($x$),$A$\_($y$)=$

kN

Part B

Determine the x and y components of reaction at pin D using scalar notation.

Express your answers in kilonewtons to three significant figures. Enter your answers separated by a comma.

View Available Hint$($s$)$

Hint $1.$ How to approach the problem

Consider member BD$.$ There are two forces acting on it: reaction at D and F$\_($B$),$ which is opposite to force

F$\_($BD$)$ acting on member AC$.$ Because F$\_($BD$)$ acts along BD$,$ force F$\_($B$)$ also acts along the member.

D$\_($x$),$D$\_($y$)=$
