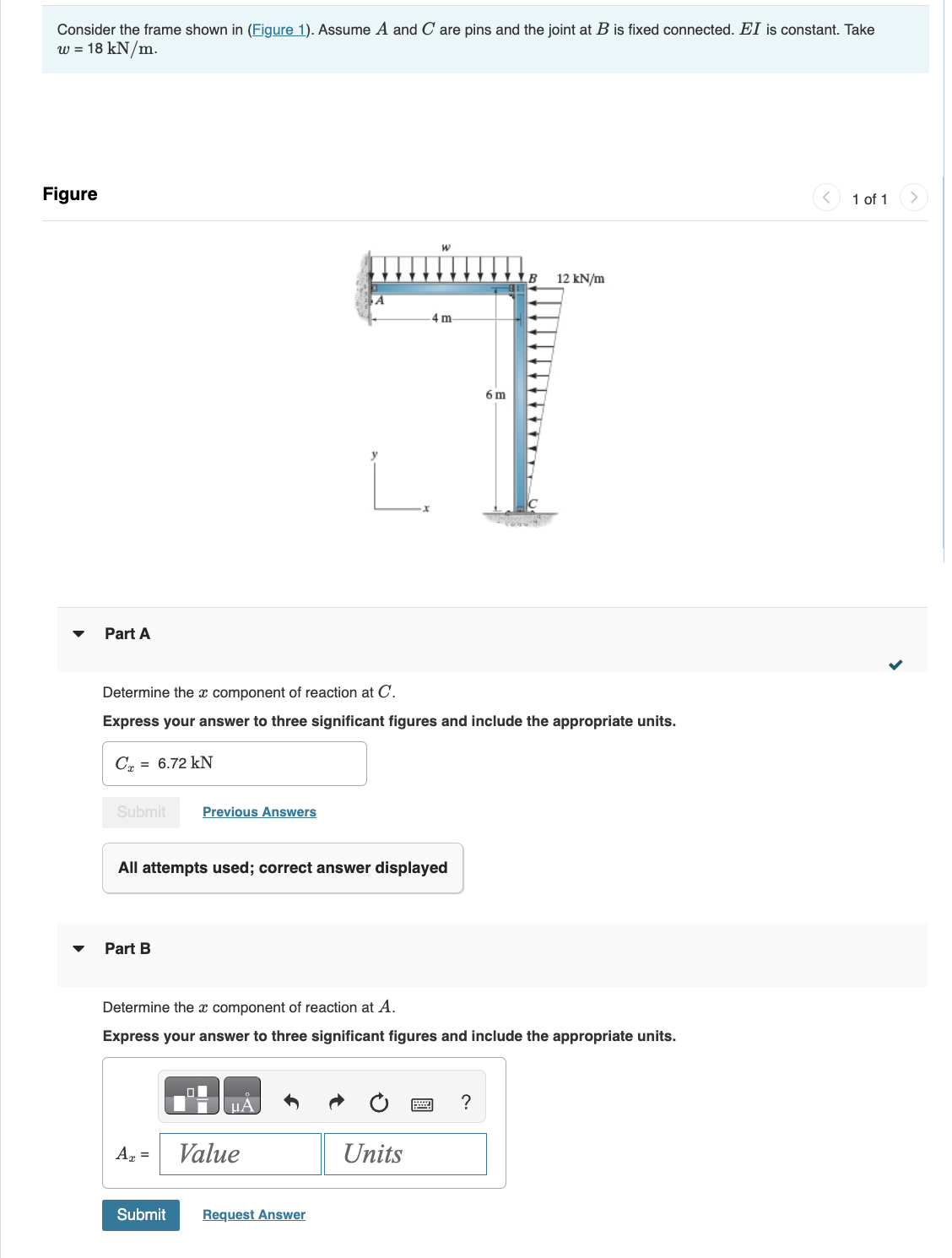

Question: Consider the frame shown in ( Figure 1 ) . Assume A and C are pins and the joint at B is fixed connected. E

Consider the frame shown in (Figure 1). Assume A and C are pins and the joint at B is fixed connected. EI is constant. Take
w=18kNm.
Figure
Part A
Determine the x component of reaction at C.
Express your answer to three significant figures and include the appropriate units.
Previous Answers
All attempts used; correct answer displayed
Part B
Determine the x component of reaction at A.
Express your answer to three significant figures and include the appropriate units.
Consider the frame shown in ( Figure 1 ) . Assume

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
