Question: Consider the gable frame shown in ( Eigure 1 ) . Assume that A , B , and C are pin connections. The purlin loads

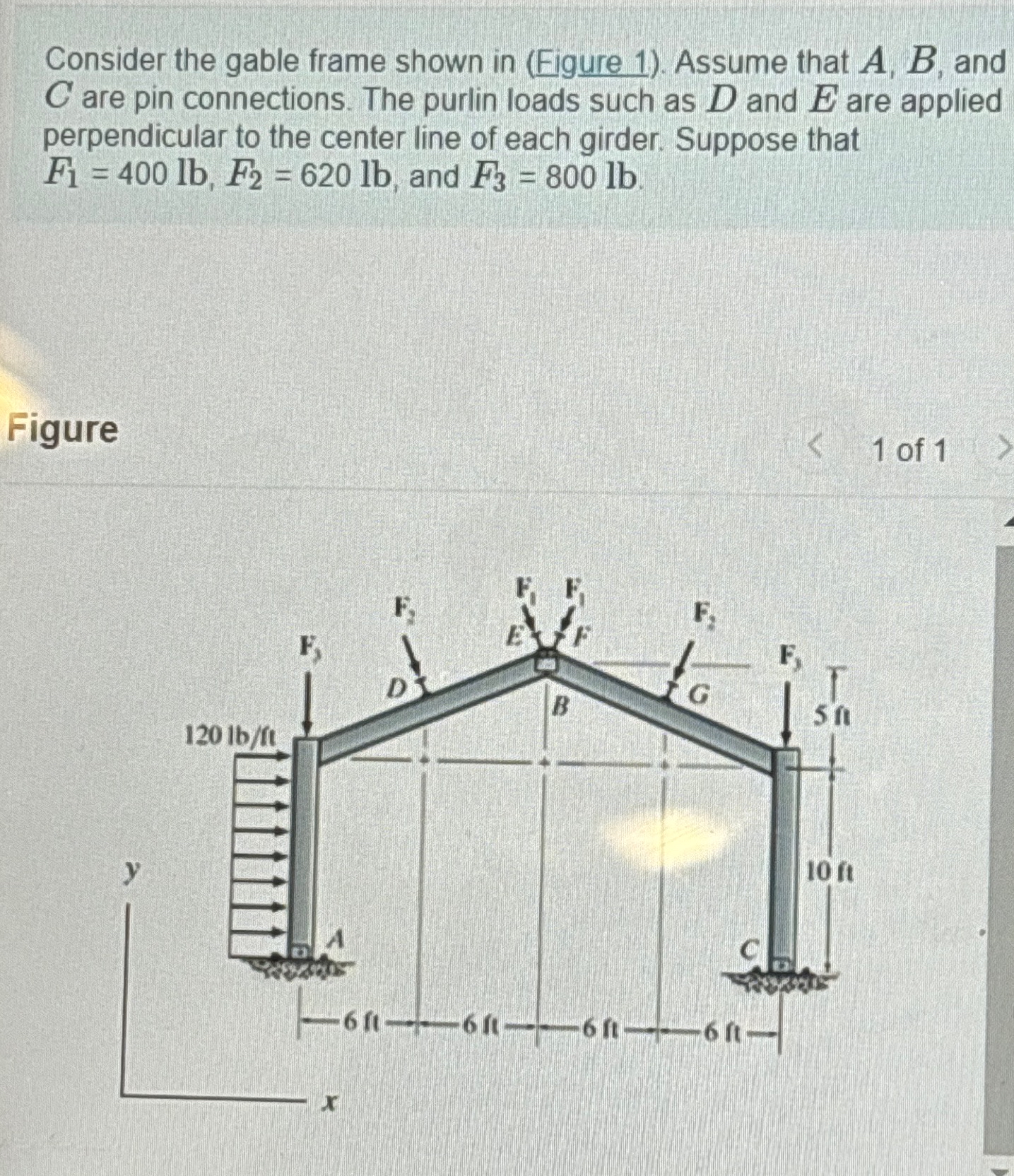

Consider the gable frame shown in (Eigure 1). Assume that A,B, and C are pin connections. The purlin loads such as D and E are applied perpendicular to the center line of each girder. Suppose that F1=400lb,F2=620lb, and F3=800lb.
Figure
1 of 1
Consider the gable frame shown in ( Eigure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
