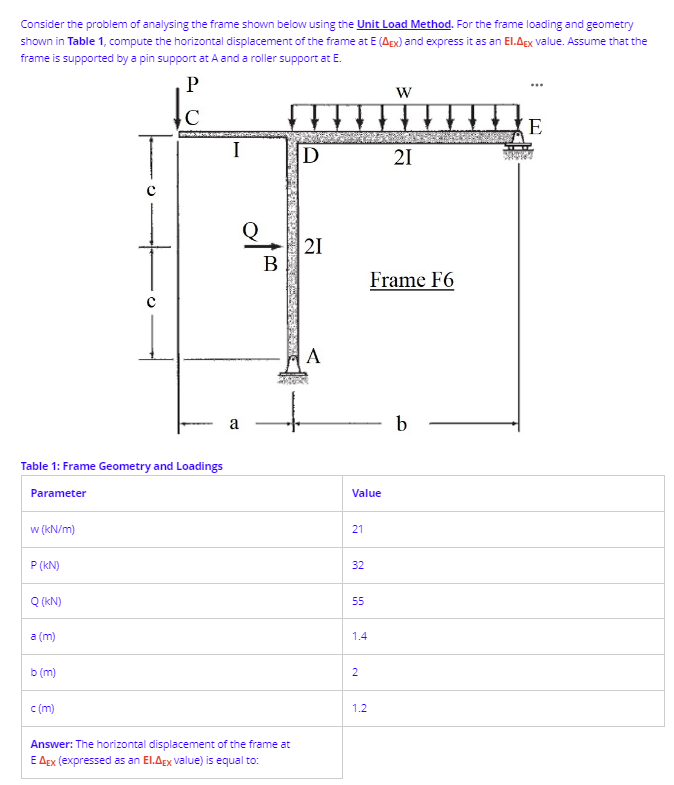

Question: Consider the problem of analysing the frame shown below using the Unit Load Method. For the frame loading and geometry shown in Table 1 ,

Consider the problem of analysing the frame shown below using the Unit Load Method. For the frame loading and geometry
shown in Table 1, compute the horizontal displacement of the frame at E(Ex) and express it as an EI.Ex value. Assume that the
frame is supported by a pin support at A and a roller support at E.
Table 1: Frame Geometry and Loadings
Consider the problem of analysing the frame shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
