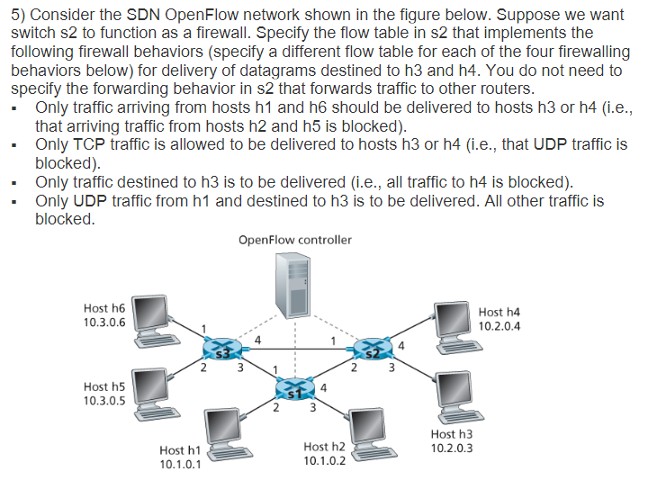

Question: Consider the SDN OpenFlow network shown in the figure below. Suppose we want switch s 2 to function as a firewall. Specify the flow table
Consider the SDN OpenFlow network shown in the figure below. Suppose we want switch to function as a firewall. Specify the flow table in s that implements the following firewall behaviors specify a different flow table for each of the four firewalling behaviors below for delivery of datagrams destined to and You do not need to specify the forwarding behavior in that forwards traffic to other routers.
Only traffic arriving from hosts h and h should be delivered to hosts h or hie that arriving traffic from hosts h and h is blocked
Only TCP traffic is allowed to be delivered to hosts h or hie that UDP traffic is blocked
Only traffic destined to h is to be delivered ie all traffic to h is blocked
Only UDP traffic from h and destined to h is to be delivered. All other traffic is blocked.
