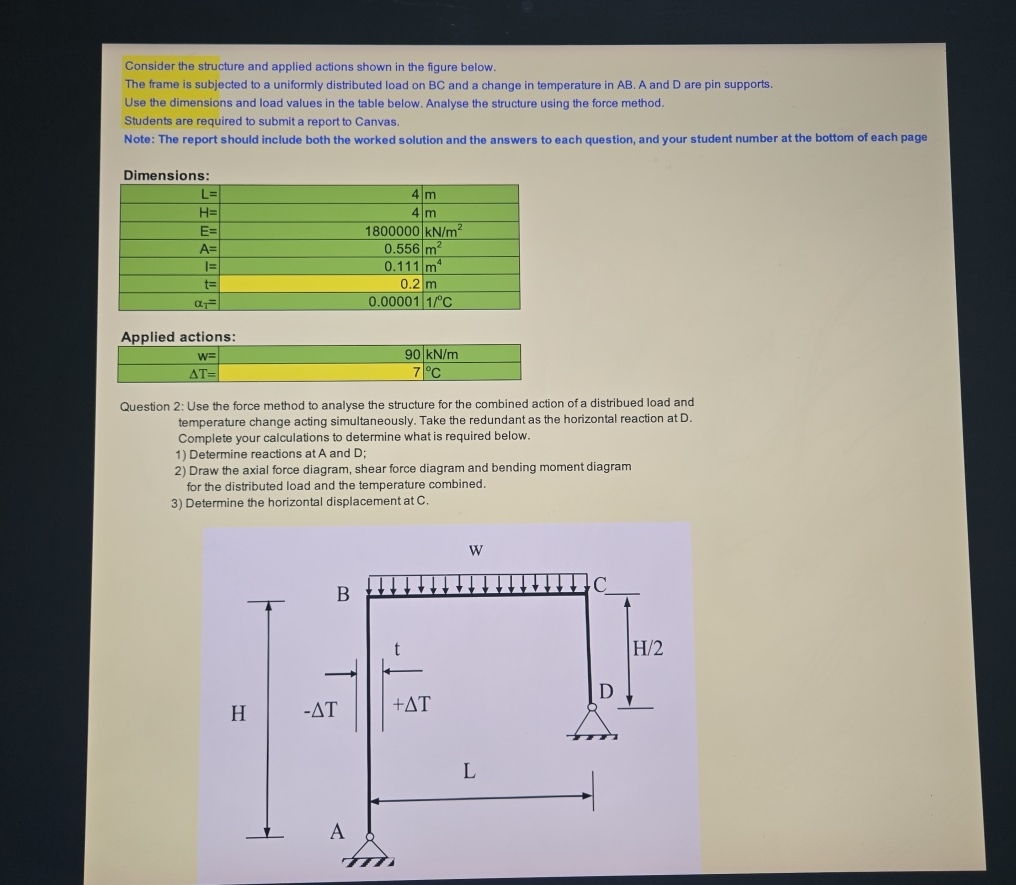

Consider the structure and applied actions shown in the figure below.

The frame is subjected to a uniformly distributed load on BC and a change in temperature in $AB.$ A and $D$ are pin supports.

Use the dimensions and load values in the table below. Analyse the structure using the force method.

Students are required to submit a report to Canvas.

Note: The report should include both the worked solution and the answers to each question, and your student number at the bottom of each page

Dimensions:

$\backslash$table$[[L=,4,$m$],[H=,4,$m$],[E=,1800000,k\frac{N}{m^2}$
