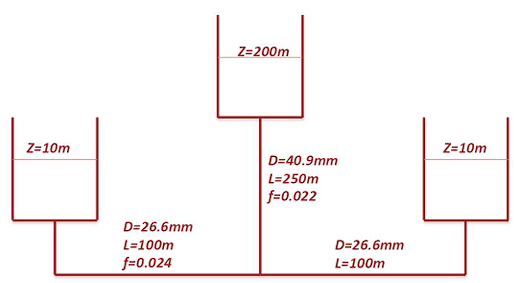

Question: Consider the three - tank system shown in Figure 1 . The system operates with water at 2 0 C and all three tanks are

Consider the three

-

tank system shown in Figure

1 .

The system operates with water at

20

C and all three tanks are exposed to the atmosphere. The figure shows information on pipe diameters and lengths. What the figure does not specify is that after the T there are graduated area reductions

(

30

inclination

) .

With the given information and considering minor losses, determine the flow rate in each branch.

Consider the three - tank system shown in Figure

Step by Step Solution

There are 3 Steps involved in it
