Question: Consider the token ring network in Figure. Token is circulating between stations in the following sequence: A , B , C , D , E

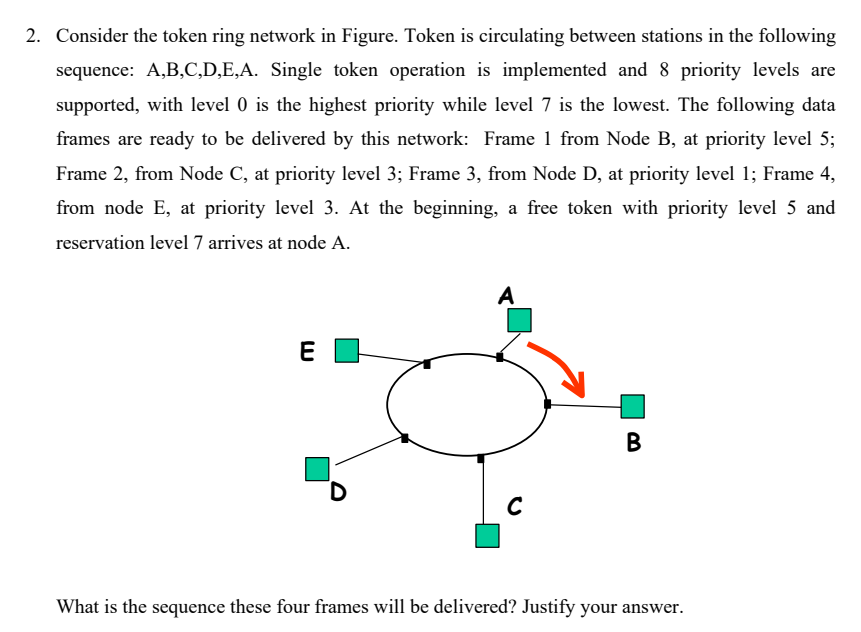

Consider the token ring network in Figure. Token is circulating between stations in the following
sequence: A,B,C,D,E,A. Single token operation is implemented and 8 priority levels are
supported, with level 0 is the highest priority while level 7 is the lowest. The following data
frames are ready to be delivered by this network: Frame 1 from Node B, at priority level 5;
Frame 2, from Node C, at priority level 3; Frame 3, from Node D, at priority level 1; Frame 4,
from node E, at priority level 3. At the beginning, a free token with priority level 5 and
reservation level 7 arrives at node A.
What is the sequence these four frames will be delivered? Justify your answer.
 Consider the token ring network in Figure. Token is circulating between
