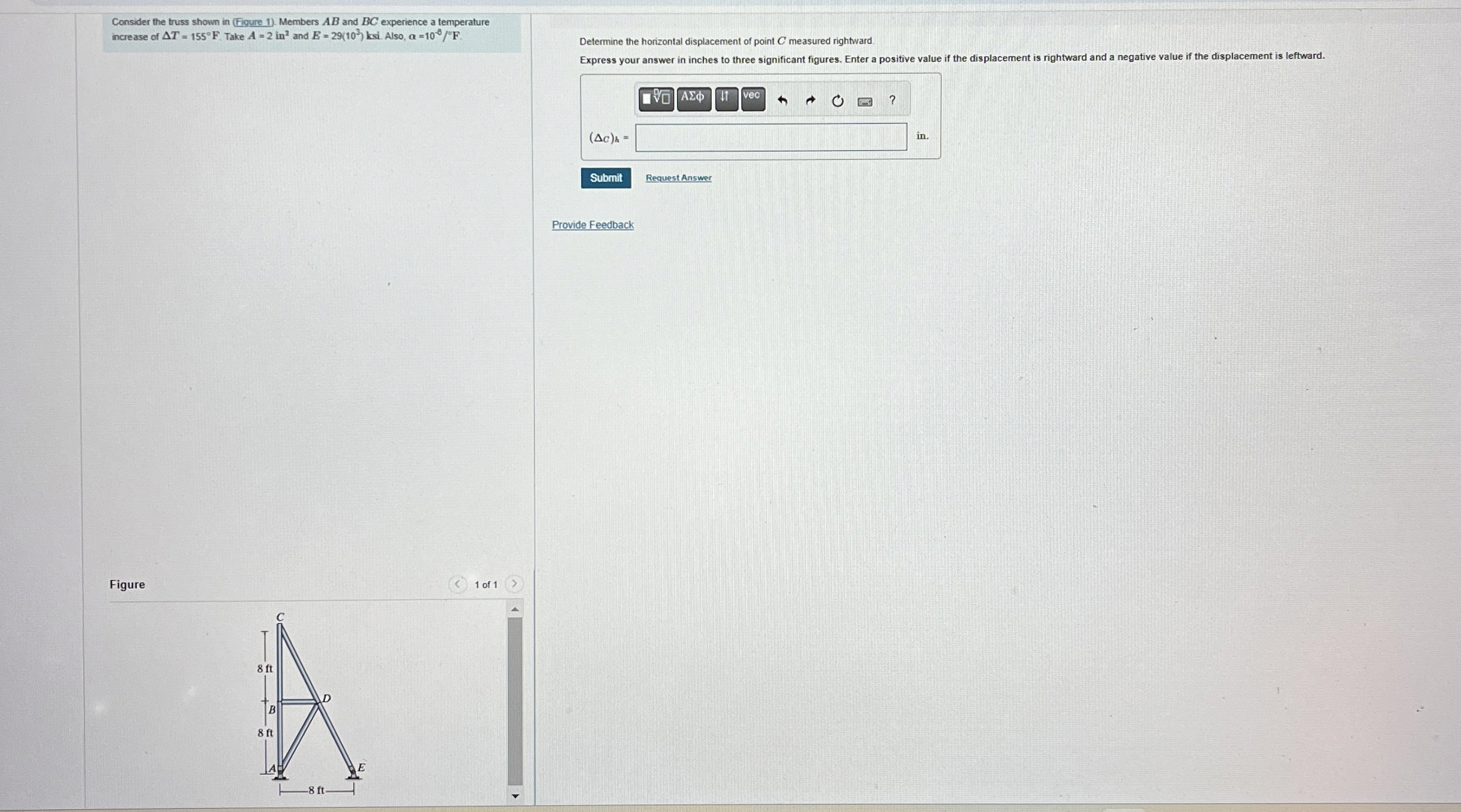

Question: Consider the truss shown in ( Figure 1 ) . Members A B and B C experience a temperature increase of T = 1 5

Consider the truss shown in

(

Figure

1) .

Members

A B

and

B C

experience a temperature increase of

T = 155 F .

Take

A = 2

?^{2}

and

E = 29 (10^{3}) k s i .

Also,

= \frac{10^{- 6}}{} F .

Determine the horizontal displacement of point

C

measured rightward

Express your answer in inches to three significant figures. Enter a positive value if the displacement is rightward and a negative value if the displacement is leftward.

Request Answer

Provide Feedback

Consider the truss shown in ( Figure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
