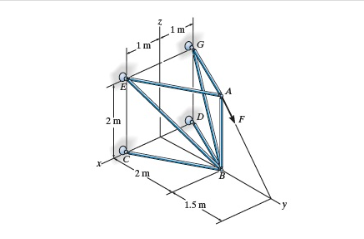

Consider the truss shown in $($Figure $1).$ Suppose that F

$=5\mathrm{.}5$ kN

$.$ Hint: Although this truss is indeterminate to the first degree, a solution is possible due to symmetry of geometry and loading.

Figure$1$ of $1$

Part A

Determine the force in the member BC

of the truss.

FBC

$=$

nothing

nothing

Request Answer

Part B

Determine the force in the member BD

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter a negative value in the case of compression and a positive value in the case of tension.

Activate to select the appropriates template from the following choices. Operate up and down arrow for selection and press enter to choose the input value typeActivate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

FBD

$=$

nothing

nothing

Request Answer

Part C

Determine the force in the member AB

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter a negative value in the case of compression and a positive value in the case of tension.

Activate to select the appropriates template from the following choices. Operate up and down arrow for selection and press enter to choose the input value typeActivate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

FAB

$=$

nothing

nothing

Request Answer

Part D

Determine the force in the member AG

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter a negative value in the case of compression and a positive value in the case of tension.

Activate to select the appropriates template from the following choices. Operate up and down arrow for selection and press enter to choose the input value typeActivate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

FAG

$=$

nothing

nothing

Request Answer

Part E

Determine the force in the member AE

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter a negative value in the case of compression and a positive value in the case of tension.

FAE

$=$

nothing

nothing

Request Answer

Part F

Determine the force in the member BG

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter a negative value in the case of compression and a positive value in the case of tension.

Activate to select the appropriates template from the following choices. Operate up and down arrow for selection and press enter to choose the input value typeActivate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

FBG

$=$

Part G

Determine the force in the member BE

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter a negative value in the case of compression and a positive value in the case of tension.
