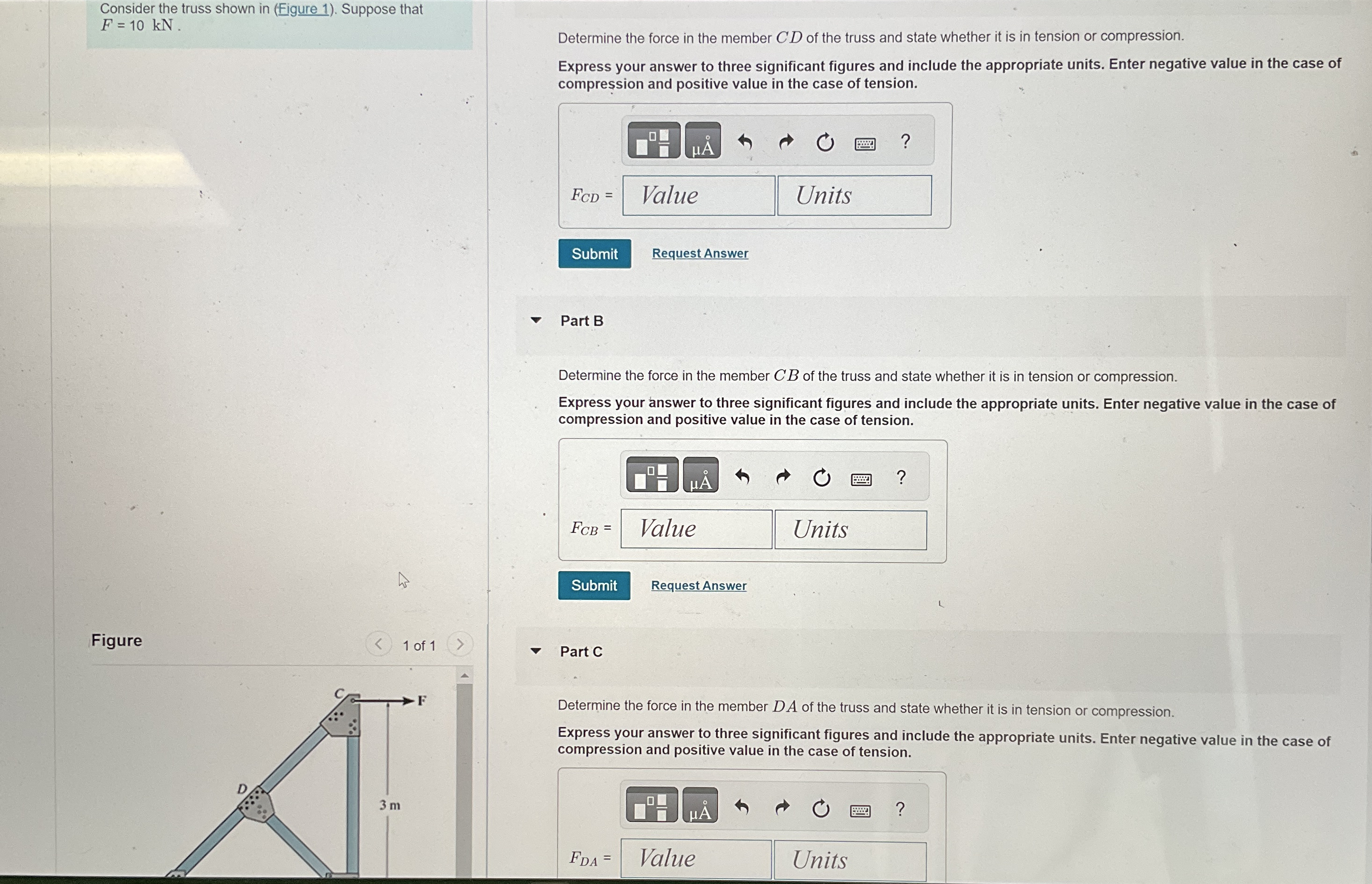

Question: Consider the truss shown in ( Figure 1 ) . Suppose that F = 1 0 k N . Determine the force in the member

Consider the truss shown in (Figure 1). Suppose that
F=10kN.
Determine the force in the member CD of the truss and state whether it is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of
compression and positive value in the case of tension.
Request Answer
Part B
Determine the force in the member CB of the truss and state whether it is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of
compression and positive value in the case of tension.
FCB=
Units
Figure
1 of 1
Request Answer
Part C
Determine the force in the member DA of the truss and state whether it is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of
compression and positive value in the case of tension.
FDA=
Dimentions of figure are 3m on the right side and 3m on the botom
Consider the truss shown in ( Figure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
