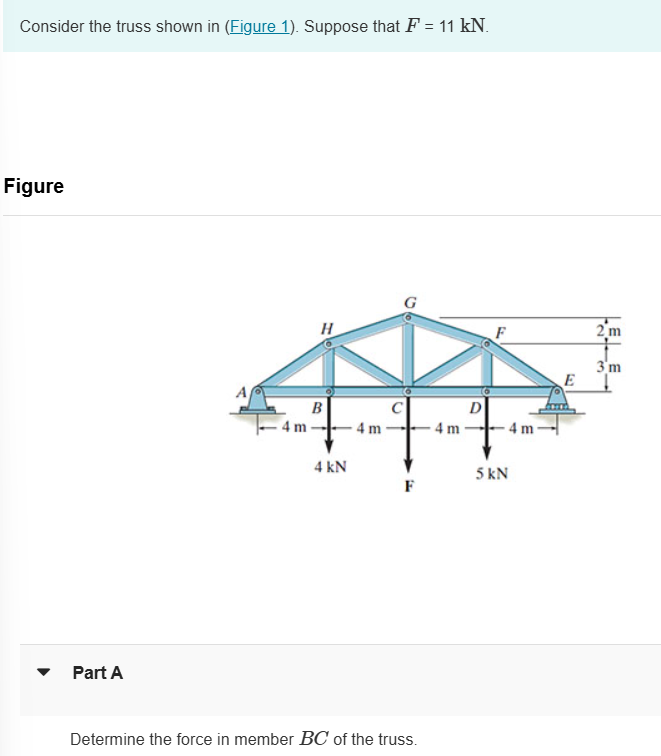

Question: Consider the truss shown in ( Figure 1 ) . Suppose that ( F = 1 1 mathrm { kN } )

Consider the truss shown in (Figure 1). Suppose that \( F=11\mathrm{kN}\).
Figure
Part A
Determine the force in member BC of the truss.
Part B
Determine the force in member CH
Part C
Determine the force in member GH of the truss
Part D
Determine the force in member CG of the truss
Consider the truss shown in ( Figure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
