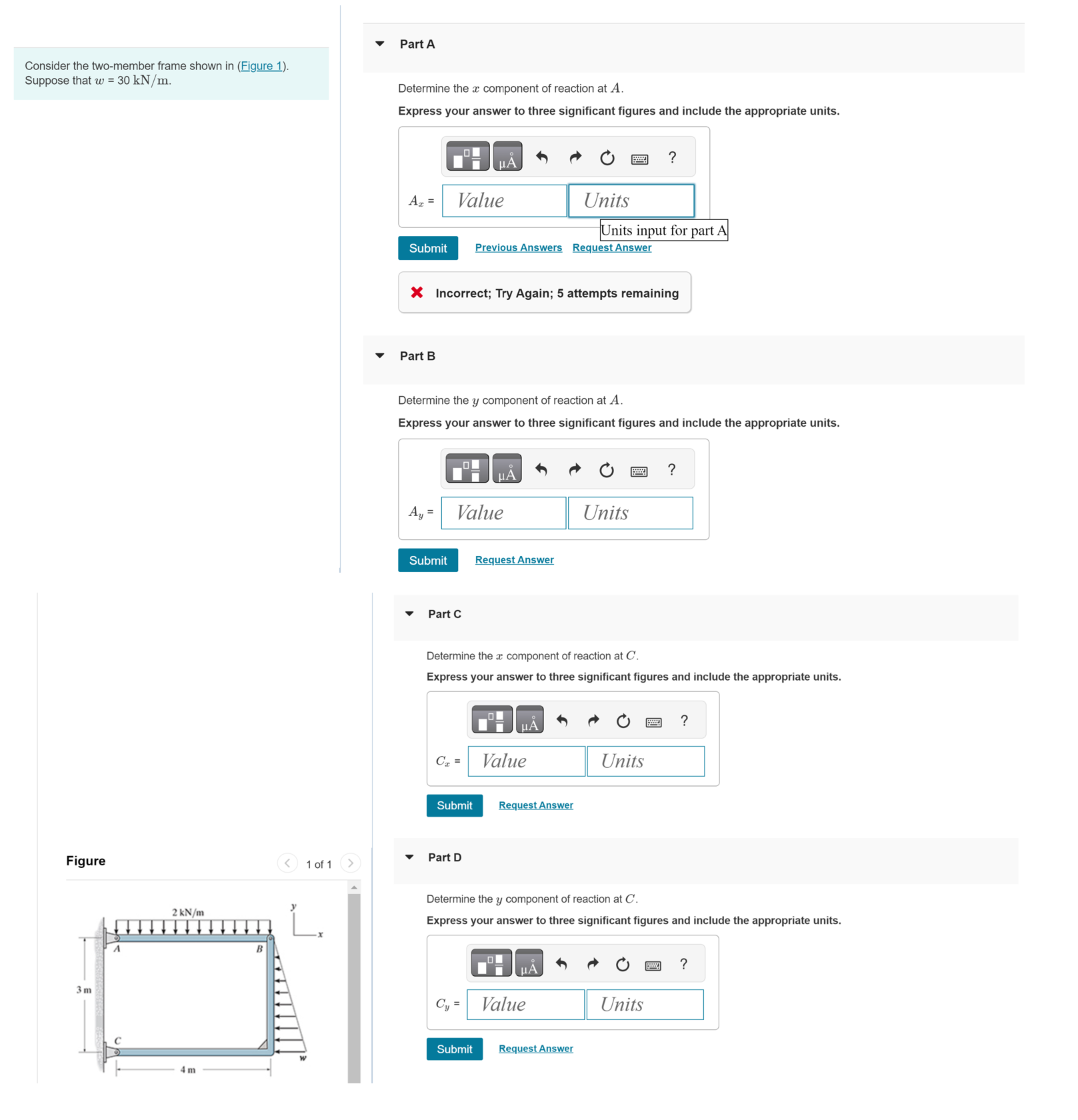

Question: Consider the two - member frame shown in ( Figure 1 ) . Suppose that w = 3 0 k N m . Part A

Consider the two

-

member frame shown in

(

Figure

1) .

Suppose that

w = 30 k \frac{N}{m} .

Part A

Determine the

x

component of reaction at

A .

Express your answer to three significant figures and include the appropriate units.

A_{x} =

Units input for part A

Previous Answers

Request Answer

Incorrect; Try Again;

5

attempts remaining

Part B

Determine the

y

component of reaction at

A .

Express your answer to three significant figures and include the appropriate units.

A_{y} =

Part C

Determine the

x

component of reaction at

C .

Express your answer to three significant figures and include the appropriate units.

C_{x} =

Request Answer

Figure

Part D

Determine the

y

component of reaction at

C .

Express your answer to three significant figures and include the appropriate units.

C_{y} =

Consider the two - member frame shown in ( Figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
