Question: . Consider the unity - feedback control system with thefeflowing open - loop transfer function: G ( s ) = 1 0 s ( s

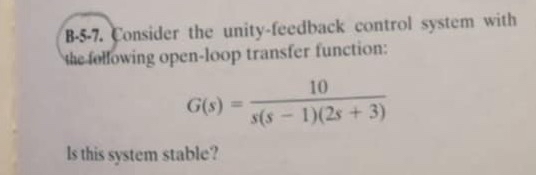

. Consider the unity-feedback control system with thefeflowing open-loop transfer function:
G(s)=10s(s-1)(2s+3)
Is this system stable?
. Consider the unity - feedback control system

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
