Question: Consider three LANs interconnected by two routers, as illustrated in the figure below. a . [ 5 points ] Assume that all ARP tables are

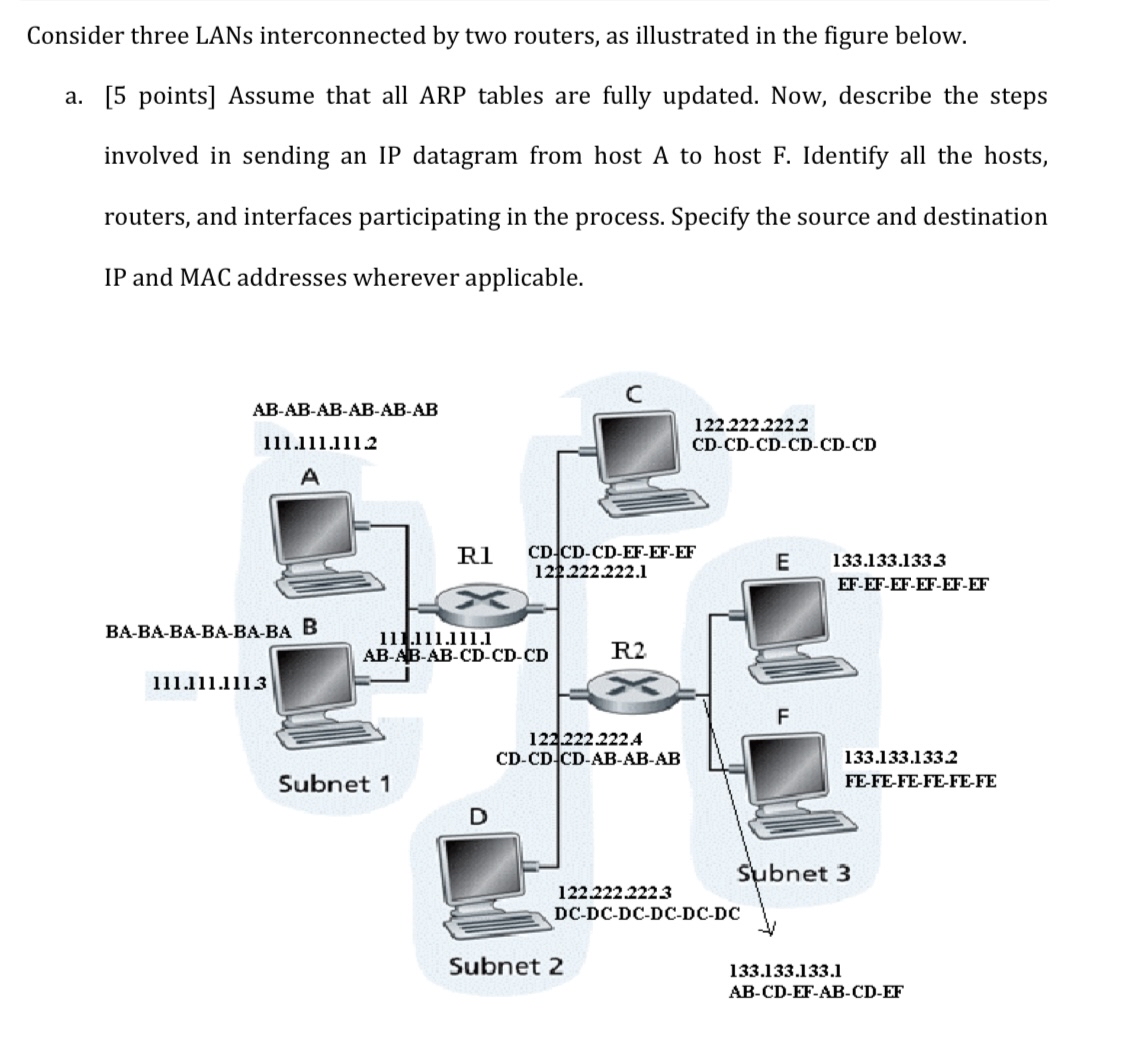

Consider three LANs interconnected by two routers, as illustrated in the figure below.

. [5

points

]

Assume that all ARP tables are fully updated. Now, describe the steps involved in sending an IP datagram from host A to host F

.

Identify all the hosts, routers, and interfaces participating in the process. Specify the source and destination IP and MAC addresses wherever applicable.

Consider three LANs interconnected by two

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
