Considering the Project Details 1 Construct the Critical Path Network Diagram 2 Find the Critical path and Expected Project Completion Time 3 Compute total floats and free floats for the non critical activities begin tabular c l c c c hline Act Depend On Duration Logic Relations Lag hline A 4 hline B A 5 FTS hline C A 6 FTS hline D B 3 FTS 3 hline E B 8 FTS hline F C 3 FTS 2 hline G D 6 STF 10 hline H F 7 STS 4 hline H F 7 FTF 8 hline I G 9 FTS hline J H 9 FTS hline end tabular

The Answer is in the image, click to view ...

Question: Considering the Project Details. 1. Construct the Critical Path Network Diagram 2. Find the Critical path and Expected Project Completion Time 3. Compute total floats

Considering the Project Details. 1. Construct the Critical Path Network Diagram 2. Find the Critical path and Expected Project Completion Time 3. Compute total floats and free floats for the non-critical activities.

Considering the Project Details. 1. Construct the

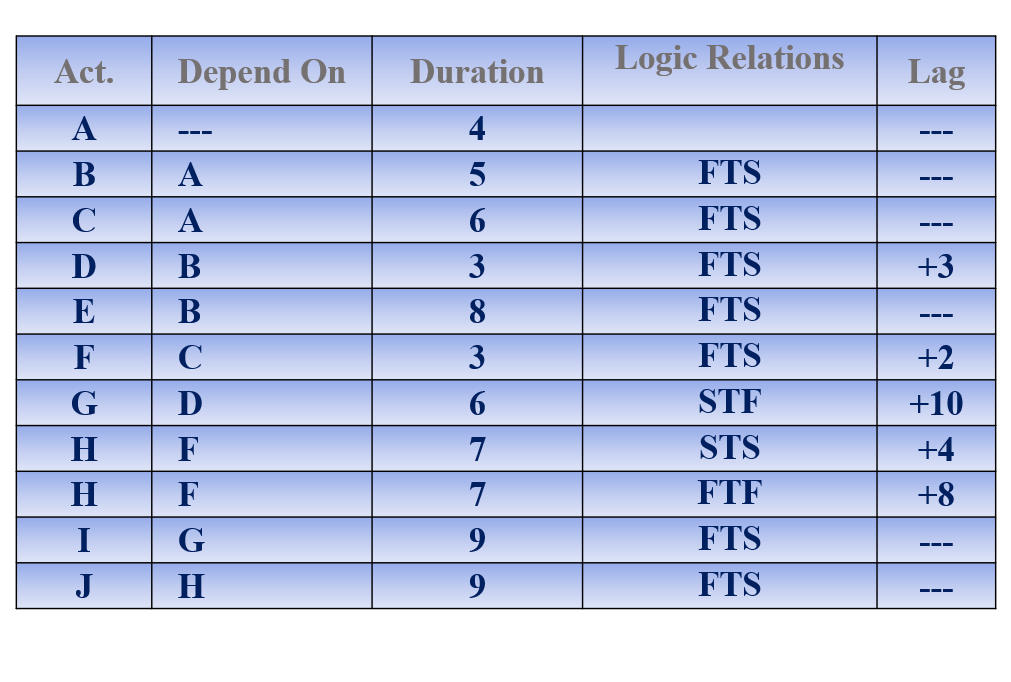

\begin{tabular}{|c|l|c|c|c|} \hline Act. & Depend On & Duration & Logic Relations & Lag \\ \hline A & & 4 & & + \\ \hline B & A & 5 & FTS & + \\ \hline C & A & 6 & FTS & \\ \hline D & B & 3 & FTS & +3 \\ \hline E & B & 8 & FTS & + \\ \hline F & C & 3 & FTS & +2 \\ \hline G & D & 6 & STF & +10 \\ \hline H & F & 7 & STS & +4 \\ \hline H & F & 7 & FTF & +8 \\ \hline I & G & 9 & FTS & + \\ \hline J & H & 9 & FTS & + \\ \hline \end{tabular}

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Considering the Project Details. 1. Construct the Critical Path Network Diagram 2. Find the Critical path and Expected Project Completion Time 3. Compute total floats and free floats for the...

please solve in detail Considering the Project Details. 1. Construct the Critical Path Network Diagram 2. Find the Critical path and Expected Project Completion Time 3. Compute total floats, free...

Considering the Project Details. 1. Construct the Critical Path Network Diagram 2. Find the Critical path and Expected Project Completion Time 3. Compute total floats, free flloats, independent...

WHATEVER YOUR EXCUSE IS A project contains the following activities and relations. Activity Predecessor(s) Duration(days) A 1 B 2 A 1 D 2 E B, C 6 F D 10 G F 3 H G 1 I F 1 J E, H 5 K 2 L F,J 1 M F 2...

A project contains the following activities and relations. Activity Predecessor(s) Duration(days) A 1 B 2 1 D 2 E B, C 6 F D 10 G F 3 H G 1 I F 1 J E, H 5 K 1 2 L F.J 1 M F 2 N L.M 4 O G. J 2 P O 2 Q...

Can you show with arcs (AoA -> Activity on Arc) A project contains the following activities and relations. Activity Predecessor(s) Duration(days) A 1 B 2 A 1 D 2 E B, C 6 F D 10 G F 3 H G 1 I F 1 J ,...

use ARC method please... thx... A project contains the following activities and relations. Activity Predecessor(s) Duration(days) A 1 B 2 A 1 D 2 E B, C 6 F D 10 G F 3 H G 1 I F 1 J , 5 K I 2 L F,J 1...

Homework Problem 1 Activity Predecessor Optimistic Duration Most Likely Pessimistic A 2 4 12 B 10 12 26 C A 8 9 10 D 10 15 20 Considering the Project Details; 1. Construct the Project Network Diagram...

Homework Problem 1 \ begin { tabular } { | c | c | c | c | c | } \ hline Activity & Predecessor & \ multicolumn { 3 } { | c | } { Duration } \ \ \ cline { 2 - 5 } & & Optimistic & Most Likely &...

Homework Problem 1 Considering the Project Details; 1. Construct the Project Network Diagram 2. Find the Expected Duration and Standard Deviation and Variance of each Activity 3. Find the Critical...
