Question: Constants: E = 2 0 5 k N m m 2 and A = 1 7 5 m m 2 CHECK EXTERNAL STABILITY Are the

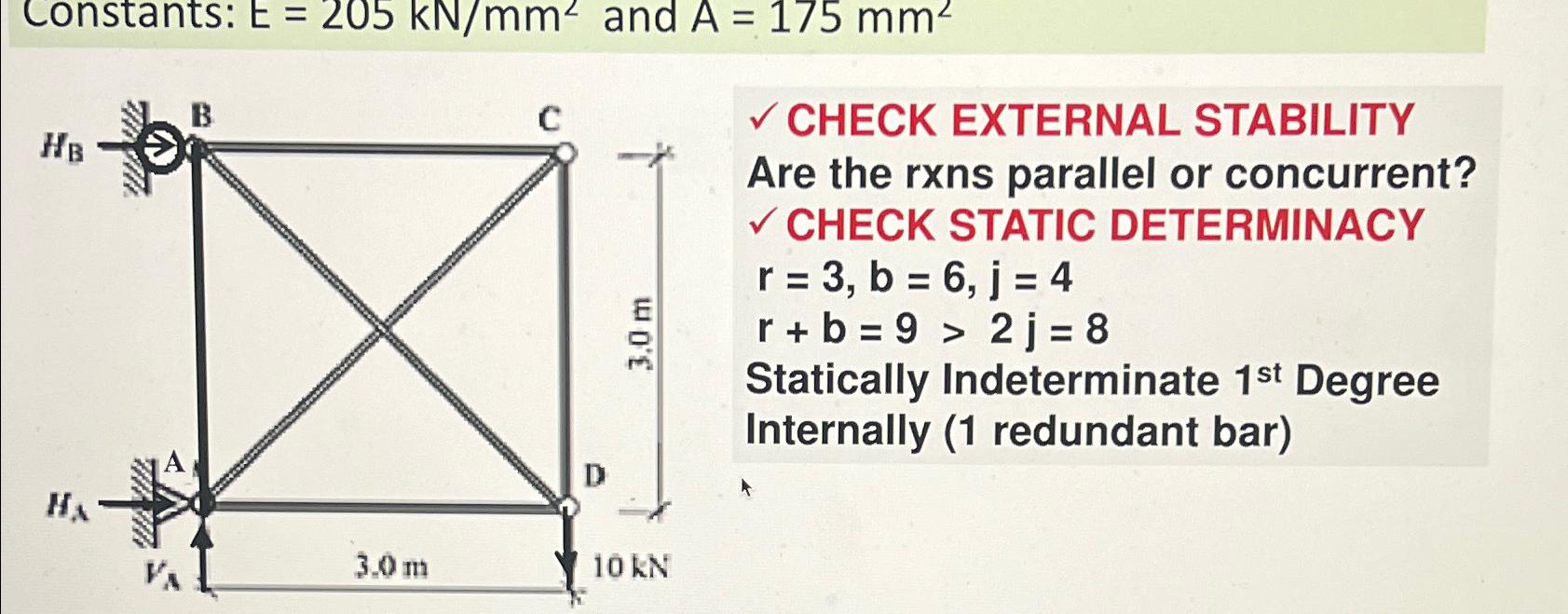

Constants: E=205kNmm2 and A=175mm2
CHECK EXTERNAL STABILITY
Are the rxns parallel or concurrent?
CHECK STATIC DETERMINACY
r=3,b=6,j=4
r+b=9>2j=8
Statically Indeterminate 1st Degree Internally (1 redundant bar)
Constants: E = 2 0 5 k N m m 2 and A = 1 7 5 m m

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
