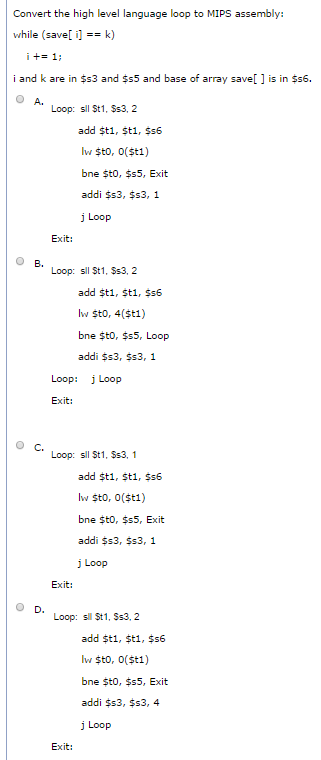

Convert the high level language loop to MIPS assembly:

while (save[ i] == k)

i += 1;

i and k are in $s3 and $s5 and base of array save[ ] is in $s6.

	A.	Loop: sll $t1, $s3, 2 add $t1, $t1, $s6 lw $t0, 0($t1) bne $t0, $s5, Exit addi $s3, $s3, 1 j Loop Exit:
	B.	Loop: sll $t1, $s3, 2 add $t1, $t1, $s6 lw $t0, 4($t1) bne $t0, $s5, Loop addi $s3, $s3, 1 Loop: j Loop Exit:
	C.	Loop: sll $t1, $s3, 1 add $t1, $t1, $s6 lw $t0, 0($t1) bne $t0, $s5, Exit addi $s3, $s3, 1 j Loop Exit:
	D.	Loop: sll $t1, $s3, 2 add $t1, $t1, $s6 lw $t0, 0($t1) bne $t0, $s5, Exit addi $s3, $s3, 4 j Loop Exit:
