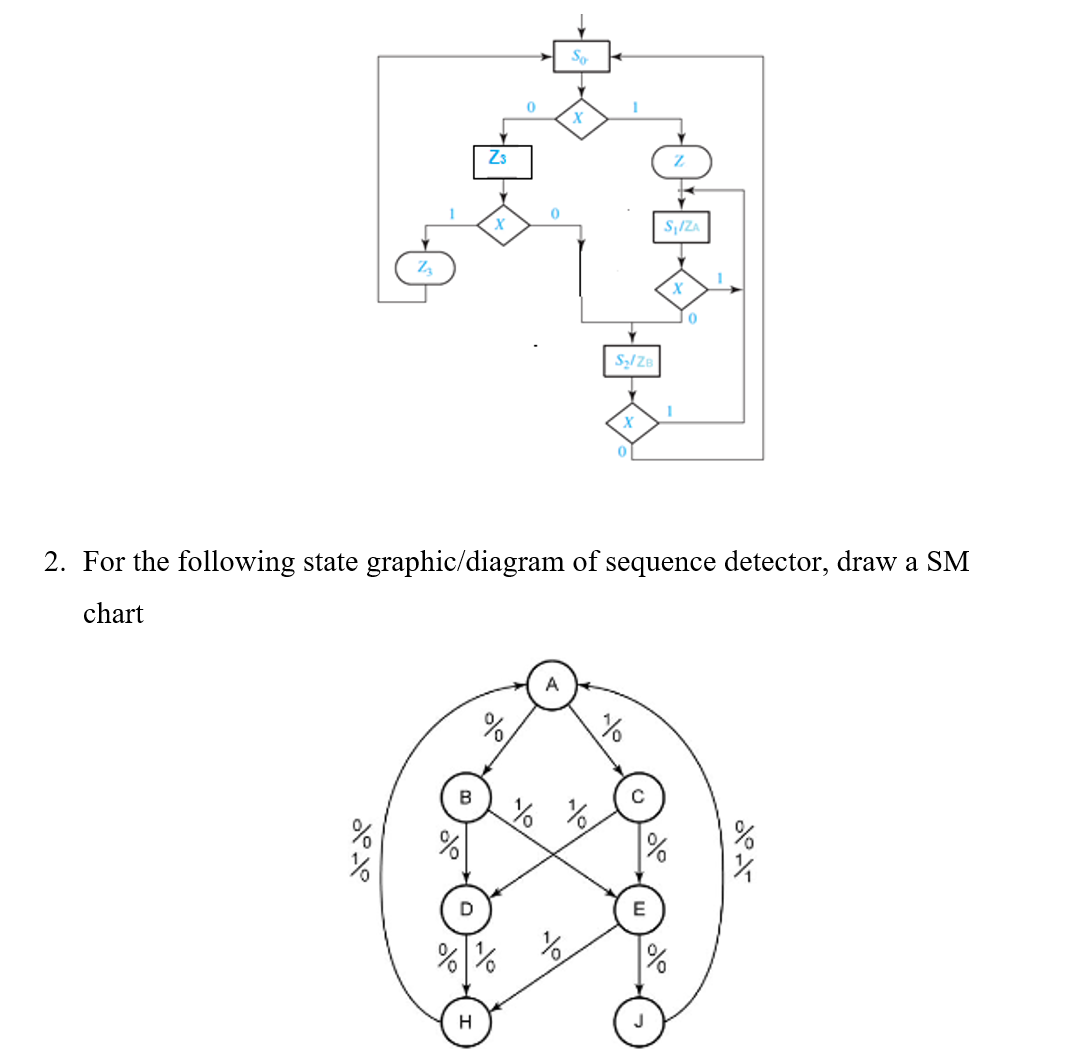

Question: Convert the state graph into equivalent SM chart. The SM chart above is an example how the SM visual should look like. Having trouble between

Convert the state graph into equivalent SM chart. The SM chart above is an example how the SM visual should look like. Having trouble between B C D and E

.

Lines cant cross from my understanding.

Convert the state graph into equivalent SM chart.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
