Question: Convert/Map an ER Diagram to Database Relations (Relational Schema) Specification 1. Exercise 1: Convert/Map the following ER diagram into Database Relations (or called Relational schema)

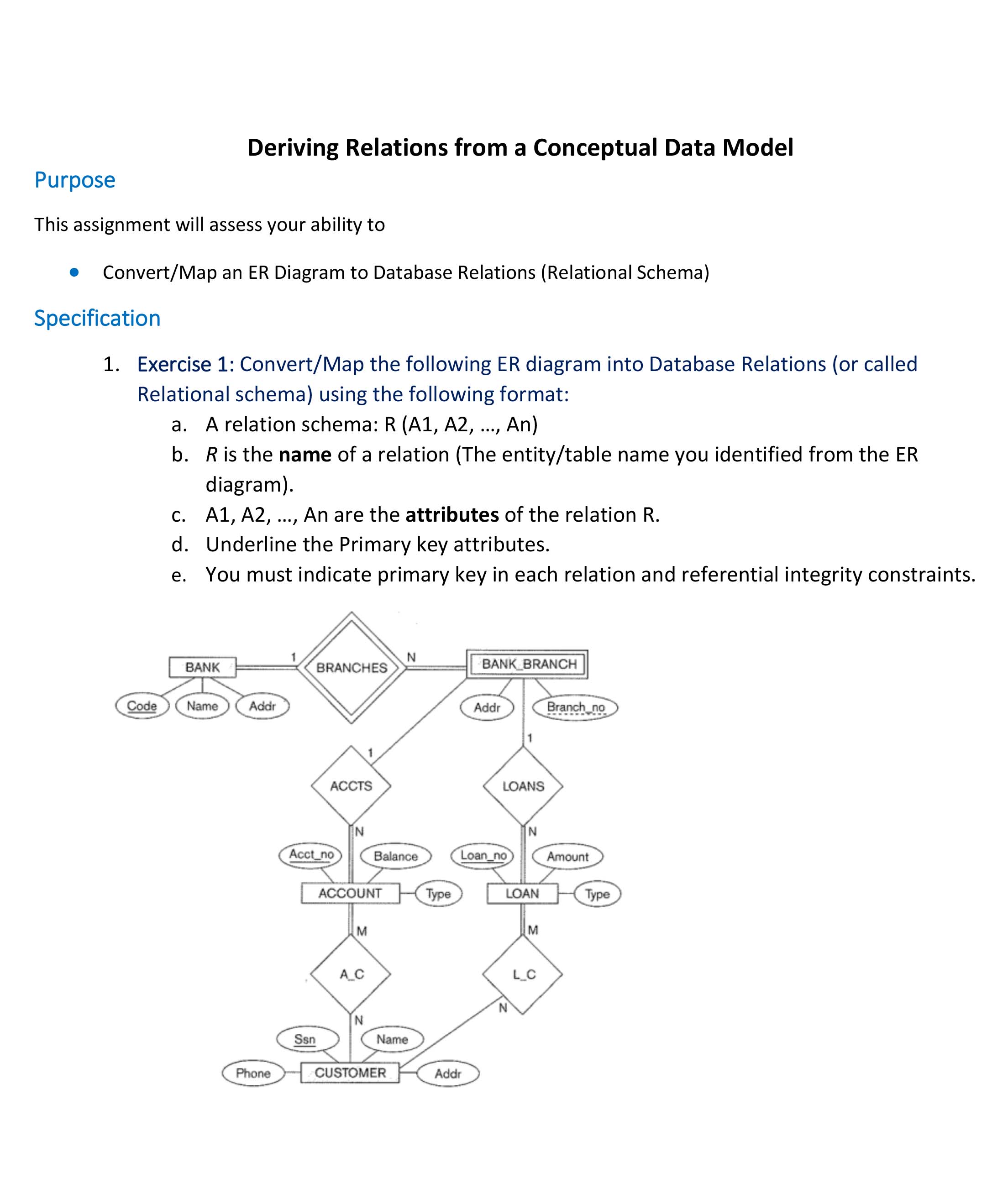

Convert/Map an ER Diagram to Database Relations (Relational Schema) Specification 1. Exercise 1: Convert/Map the following ER diagram into Database Relations (or called Relational schema) using the following format: a. A relation schema: R (A1, A2, ..., An) b. R is the name of a relation (The entity/table name you identified from the ER diagram). c. A1, A2, ..., An are the attributes of the relation R. d. Underline the Primary key attributes. e. You must indicate primary key in each relation and referential integrity constraints.

1. Exercise 1: Convert/Map the following ER diagram into Database Relations (or called Relational schema) using the following format: a. A relation schema: R(A1,A2,,An) b. R is the name of a relation (The entity/table name you identified from the ER diagram). c. A1,A2,,An are the attributes of the relation R. d. Underline the Primary key attributes. e. You must indicate primary key in each relation and referential integrity constrain

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
