Question: * Correct answer is on the picture, I need the solution, thank you * The cart B moves to the right with acceleration a =

*Correct answer is on the picture, I need the solution, thank you*

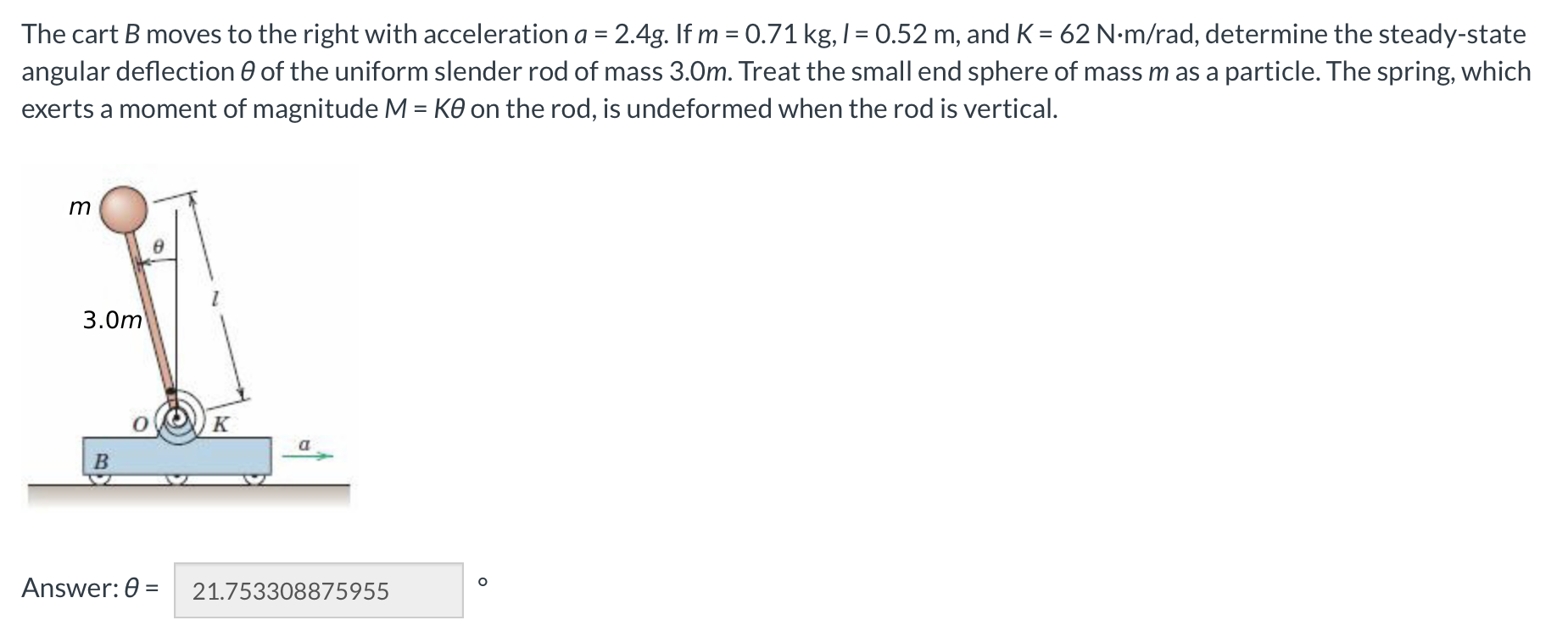

The cart B moves to the right with acceleration a=2.4g. If m=0.71kg,l=0.52m, and K=62N*(m)/(r)ad, determine the steady-state
angular deflection \theta of the uniform slender rod of mass 3.0 m . Treat the small end sphere of mass m as a particle. The spring, which
exerts a moment of magnitude M=K\theta on the rod, is undeformed when the rod is vertical.
* Correct answer is on the picture, I need the
