Question: Could someone please help me with these quick physics questions? 1. Analyze Graph 1 and rank the change in magnetic flux during Times A, B,
Could someone please help me with these quick physics questions?

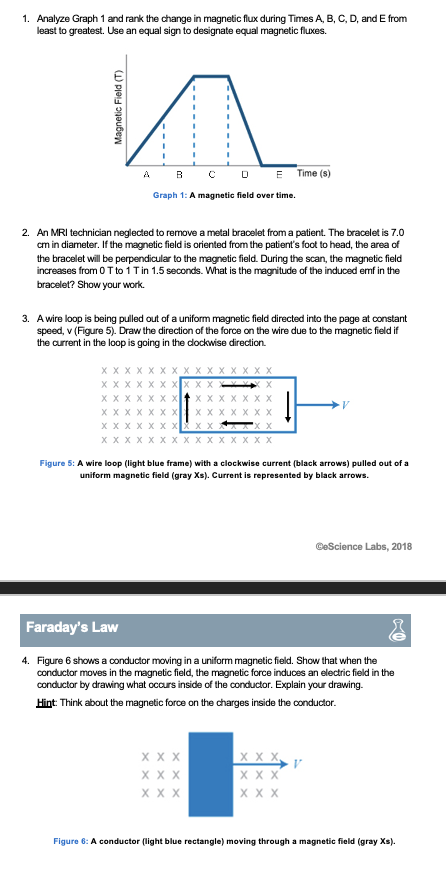

1. Analyze Graph 1 and rank the change in magnetic flux during Times A, B, C, D, and E from least to greatest. Use an equal sign to designate equal magnetic fluxes. Magnetic Field (T) A B C E Time (s) Graph 1: A magnetic field over time. 2. An MRI technician neglected to remove a metal bracelet from a patient. The bracelet is 7.0 cm in diameter. If the magnetic field is oriented from the patient's foot to head, the area of the bracelet will be perpendicular to the magnetic field. During the scan, the magnetic field increases from 0 T to 1 T in 1.5 seconds. What is the magnitude of the induced emf in the bracelet? Show your work. 3. A wire loop is being pulled out of a uniform magnetic field directed into the page at constant speed, v (Figure 5). Draw the direction of the force on the wire due to the magnetic field if the current in the loop is going in the clockwise direction. xXXXXXXXXXXXXXX XXXXXXXXXXX 4X X XXXXXXX XXXXXXX XXXXXXX XXXXXXX XXXXXXXXXXXXXXX XXXXXXXXXXXXXXX Figure 5: A wire loop (light blue frame) with a clockwise current (black arrows) pulled out of a uniform magnetic field (gray Xs). Current is represented by black arrows. GeScience Labs, 2018 Faraday's Law 4. Figure 6 shows a conductor moving in a uniform magnetic field. Show that when the conductor moves in the magnetic field, the magnetic force induces an electric field in the conductor by drawing what occurs inside of the conductor. Explain your drawing. Hint: Think about the magnetic force on the charges inside the conductor. XXX X X X y XXX XXX XXX XXX Figure 6: A conductor (light blue rectangle) moving through a magnetic field (gray Xs)
