Question: Could you solve it using the psychrometricometric chart please Q 2 : An air conditioning system supplying air to a space with a sensible heat

Could you solve it using the psychrometricometric chart please

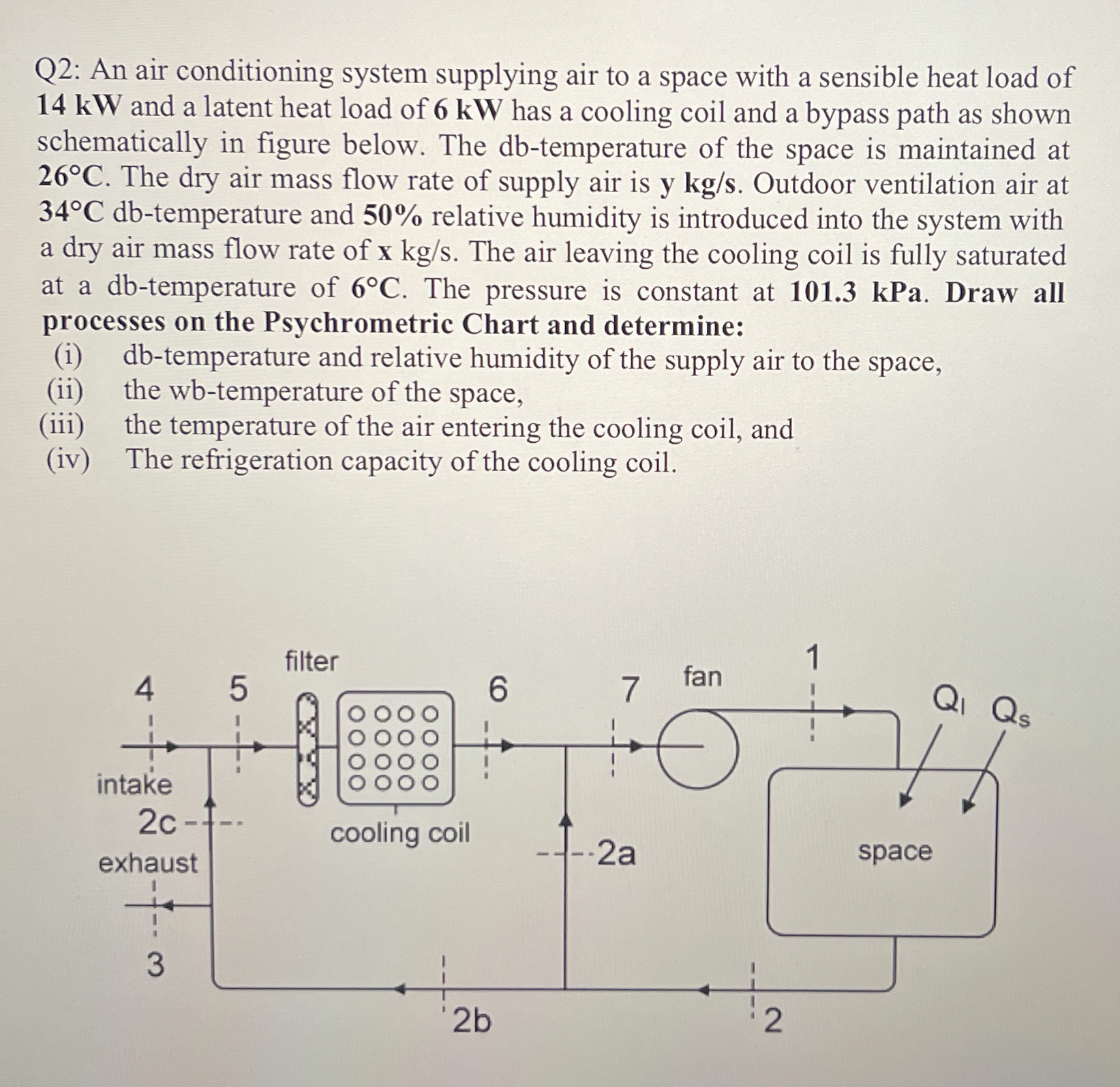

Q2: An air conditioning system supplying air to a space with a sensible heat load of 14 kW and a latent heat load of 6kW has a cooling coil and a bypass path as shown schematically in figure below. The db-temperature of the space is maintained at 26C. The dry air mass flow rate of supply air is 1.2kgs. Outdoor ventilation air at 34C db-temperature and 50% relative humidity is introduced into the system with a dry air mass flow rate of 0.63kgs. The air leaving the cooling coil is fully saturated at a db-temperature of 6C. The pressure is constant at 101.3kPa. Draw all processes on the Psychrometric Chart and determine:
(i) db-temperature and relative humidity of the supply air to the space,
(ii) the wb-temperature of the space,
(iii) the temperature of the air entering the cooling coil, and
(iv) The refrigeration capacity of the cooling coil.
Could you solve it using the psychrometricometric
