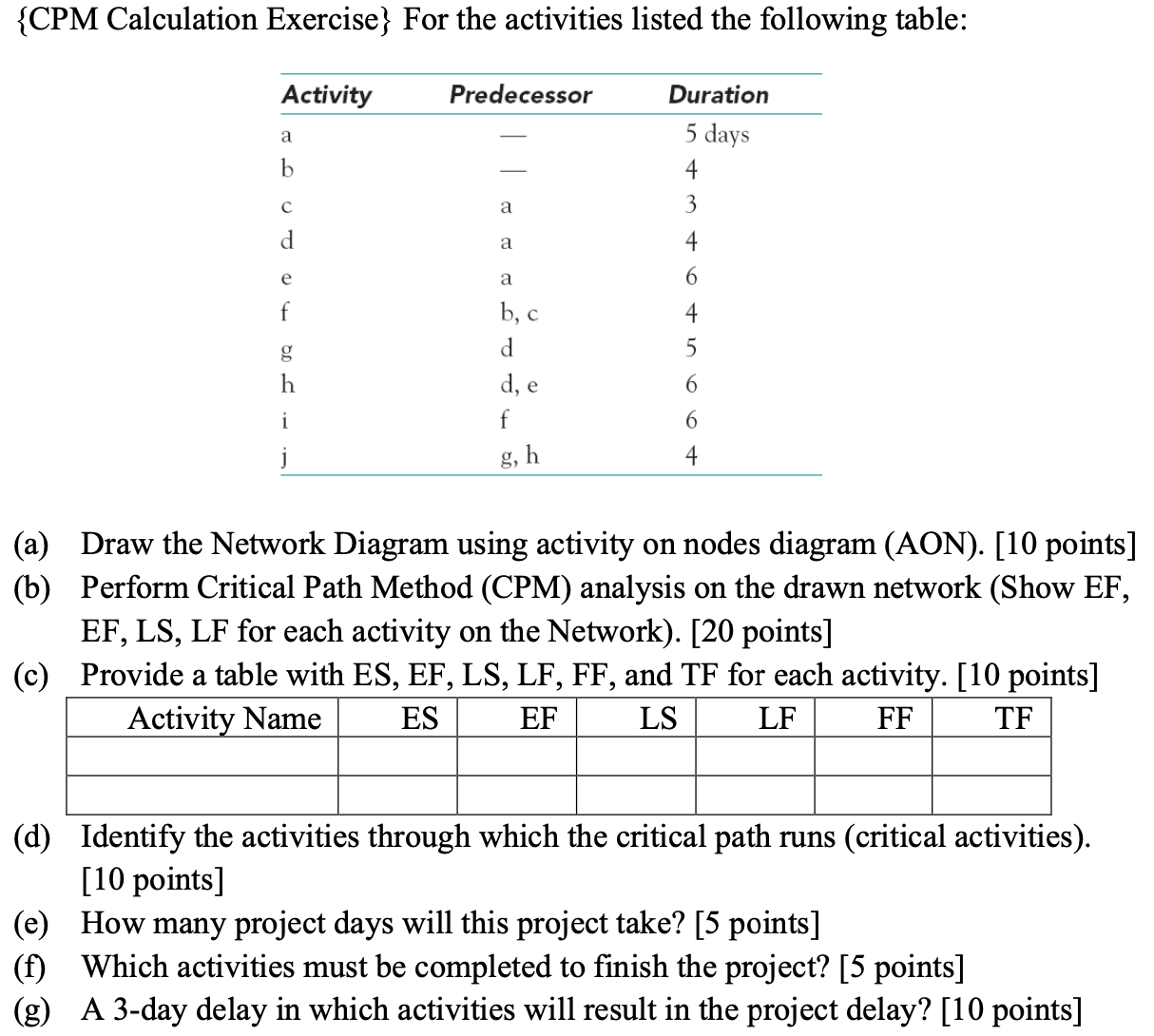

$\{$CPM Calculation Exercise$\}$ For the activities listed the following table:

$($a$)$ Draw the Network Diagram using activity on nodes diagram $($AON$).[10$ points$]$

$($b$)$ Perform Critical Path Method $($CPM$)$ analysis on the drawn network $($Show EF$,$

EF$,$ LS$,$ LF for each activity on the Network$).[20$ points$]$

$($c$)$ Provide a table with ES$,$ EF$,$ LS$,$ LF$,$ FF$,$ and TF for each activity. $[10$ points$]$

$($d$)$ Identify the activities through which the critical path runs $($critical activities$).$

$[10$ points$]$

$($e$)$ How many project days will this project take? $[5$ points$]$

$($f$)$ Which activities must be completed to finish the project? $[5$ points$]$

$($g$)$ A $3-$day delay in which activities will result in the project delay? $[10$ points$]$
