CREATE A C++ PSUEDOCODE

AND SOLVE FOR TIME COMPLEXITY

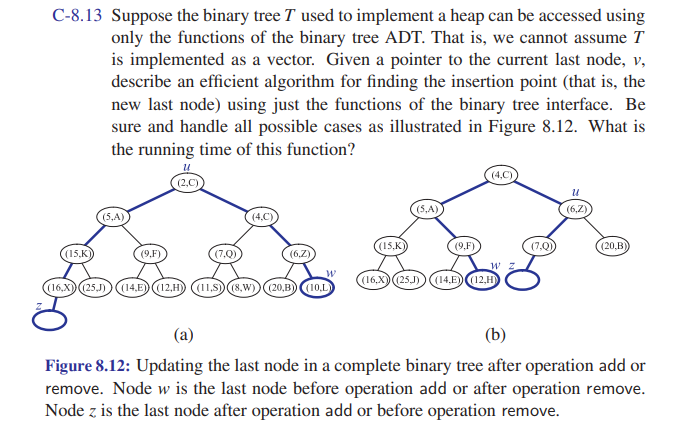

C-8.13 Suppose the binary tree T used to implement a heap can be accessed using only the functions of the binary tree ADT. That is, we cannot assume T is implemented as a vector. Given a pointer to the current last node, v, describe an efficient algorithm for finding the insertion point (that is, the new last node) using just the functions of the binary tree interface. Be sure and handle all possible cases as illustrated in Figure 8.12. What is the running time of this function? (b) Figure 8.12: Updating the last node in a complete binary tree after operation add or remove. Node w is the last node before operation add or after operation remove. Node z is the last node after operation add or before operation remove. C-8.13 Suppose the binary tree T used to implement a heap can be accessed using only the functions of the binary tree ADT. That is, we cannot assume T is implemented as a vector. Given a pointer to the current last node, v, describe an efficient algorithm for finding the insertion point (that is, the new last node) using just the functions of the binary tree interface. Be sure and handle all possible cases as illustrated in Figure 8.12. What is the running time of this function? (b) Figure 8.12: Updating the last node in a complete binary tree after operation add or remove. Node w is the last node before operation add or after operation remove. Node z is the last node after operation add or before operation remove
