Question: Create a logical schema based on the given ERD Fname Minit Lname Bdate Name Address Salary Ssn Sex Locations N WORKS FOR Name Number EMPLOYEE

Create a logical schema based on the given ERD

Create a logical schema based on the given ERD

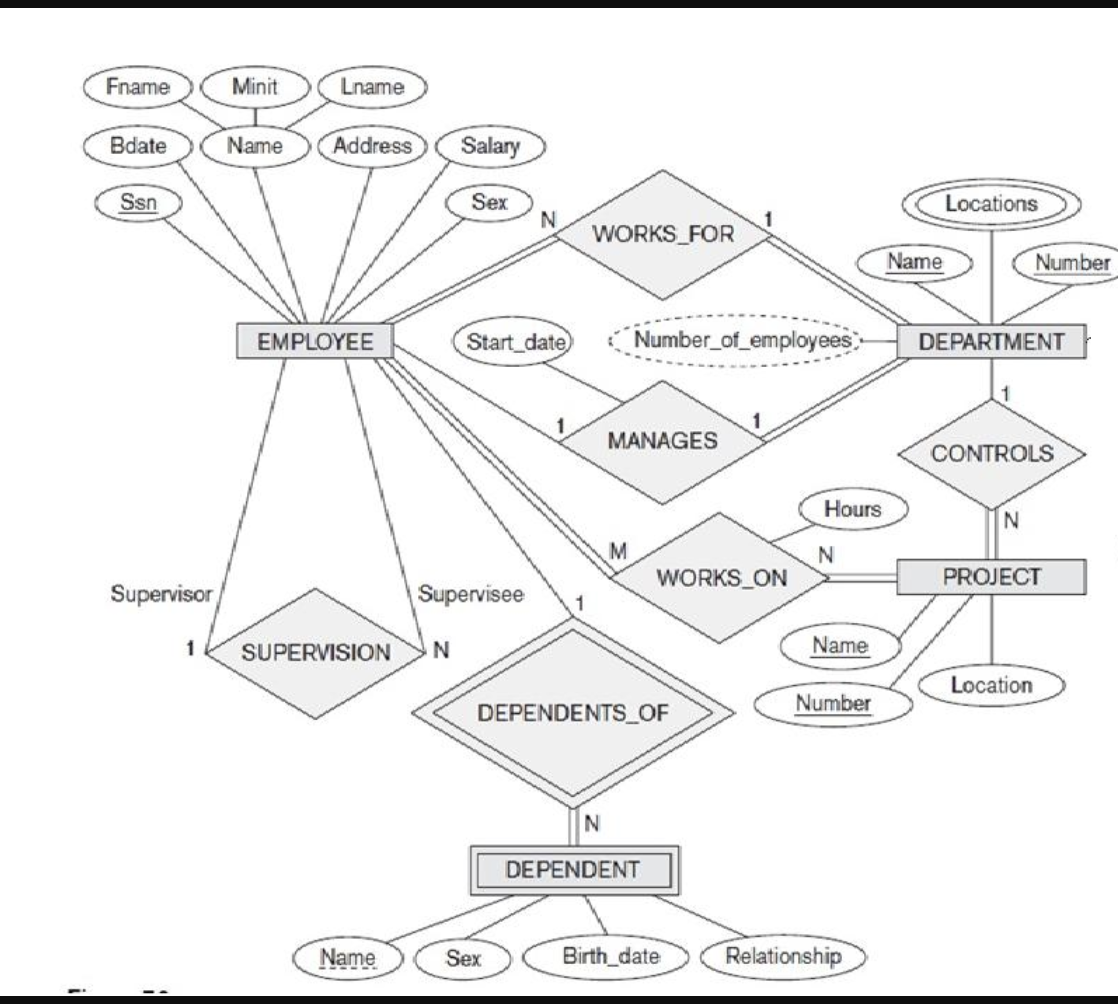

Fname Minit Lname Bdate Name Address Salary Ssn Sex Locations N WORKS FOR Name Number EMPLOYEE Start_date) Number_of_employees DEPARTMENT MANAGES CONTROLS Hours N M N WORKS_ON PROJECT Supervisor Supervisee 1 SUPERVISION N Name Location Number DEPENDENTS_OF N DEPENDENT Name Sex Birth_date Relationship
