Question: Create a memory with 1 2 8 K 1 6 from 6 4 K 8 RAM 1 . How many 6 4 K 8 RAMs

Create a memory with 128K16 from 64K8RAM

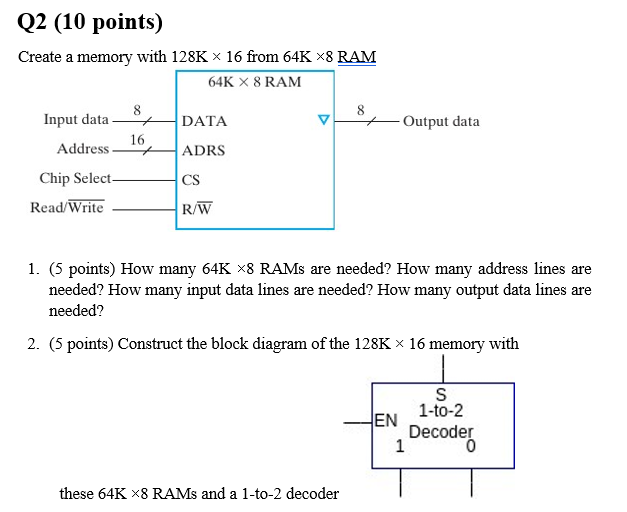

1. How many 64K8RAMs are needed? How many address lines are
needed? How many input data lines are needed? How many output data lines are needed?
2. Construct the block diagram of the 128K x 16 memory with these 64K8 RAMs and a 1-to-2 decoder.
Create a memory with 1 2 8 K 1 6 from 6 4 K 8 RAM

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
