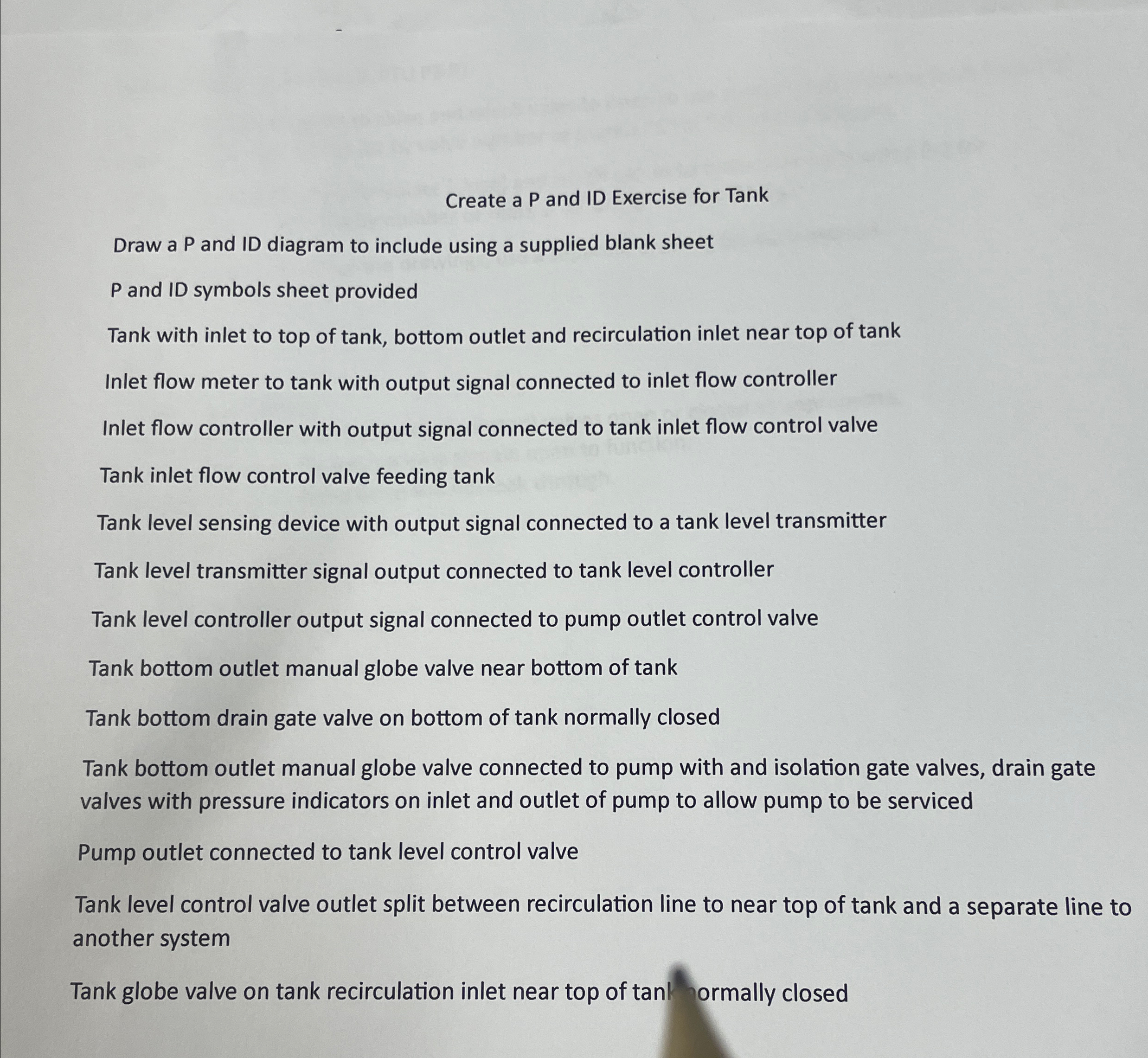

Create a $P$ and ID Exercise for Tank

Draw a $P$ and ID diagram to include using a supplied blank sheet

$P$ and ID symbols sheet provided

Tank with inlet to top of tank$,$ bottom outlet and recirculation inlet near top of tank

Inlet flow meter to tank with output signal connected to inlet flow controller

Inlet flow controller with output signal connected to tank inlet flow control valve

Tank inlet flow control valve feeding tank

Tank level sensing device with output signal connected to a tank level transmitter

Tank level transmitter signal output connected to tank level controller

Tank level controller output signal connected to pump outlet control valve

Tank bottom outlet manual globe valve near bottom of tank

Tank bottom drain gate valve on bottom of tank normally closed

Tank bottom outlet manual globe valve connected to pump with and isolation gate valves, drain gate valves with pressure indicators on inlet and outlet of pump to allow pump to be serviced

Pump outlet connected to tank level control valve

Tank level control valve outlet split between recirculation line to near top of tank and a separate line to another system

Tank globe valve on tank recirculation inlet near top of tanl ormally closed
