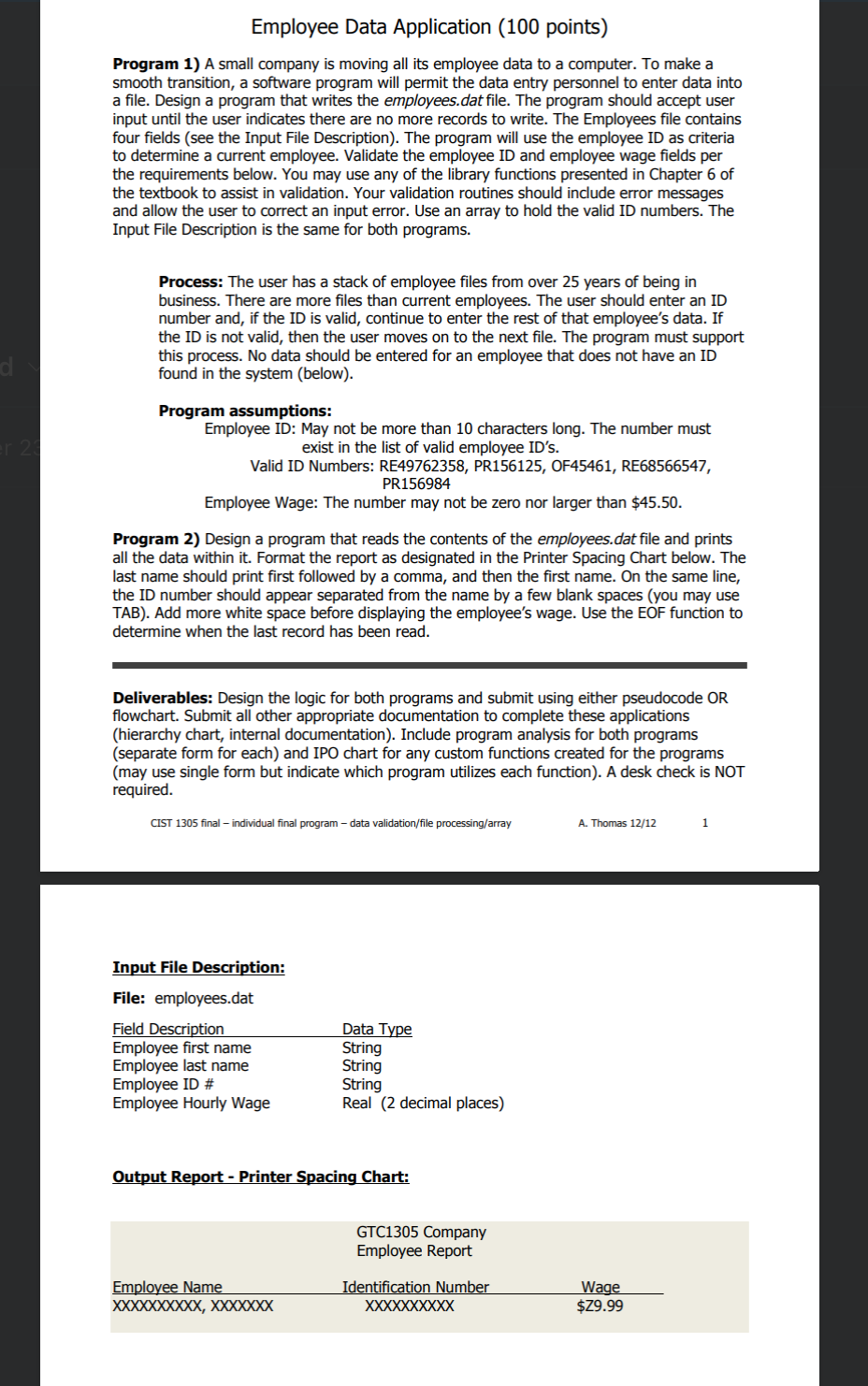

Create a Word document that contains:

Analysis using IPO

Task Hierarchy Chart

Pseudo Code

Tips for Final Project

For #$1$ Problem.

$$

$//$ The pseudo$-$code for opening the output file and closing it$.$

$$

Declare Outsream EmployeeData$//$ EmployeeData is an output stream

Open EmployeeData with $$employees$.$dat$//$ Connect the output stream to the file

$$

Close EmplyeesData$//$ Close it after wring all the employee records to the file

$$

$//$ The pseudo code for writing data to the output stream

$//$ Example is writing the first record to the output stream $($as same as writing to the file$)$

Write empID$[0]$ to EmployeeData

Write fName$[0]$ to EmployeeData

Write lName$[0]$ to EmployeeData

Write wage$[0]$ to EmployeeData

$$

$//$ The pseudo$-$code for writing a newline to the output stream

Write NEWLINE to EmployeeData

$$

$$

$//$ The overall conrol sequence in the main$()$

$$

declare Const numEmp $=5//$ number of employees

$$

$//$ Create parallel arrays for employee record

declare String idNum$[$numEmp$]$

declare String firstName$[$numEmp$]$

declare String lastName$[$numEmp$]$

declare Real wage$[$numEmp$]$

declare Boolean continue $=$ true

declare Integer count $=0$

$$

$//$ Array of valid employee IDs

declare string validID$[$numEmp$]=$ RE$49762358,$ PR$156125,$ OF$45461,$ RE$68566547,$ PR$156984$

$$

$//$ open the output stream and connect it to the output file

declare OutputFile employeeData

Open employeeData with "employees.dat"

$$

$//$ Allows user to keep adding employee records until stop is requested.

while$($continue$)$

$\{$

$//$ Getting employee ID$,$ name, and hourly wage

idNum$[$count$]=$ call$$getID$($validID$,$ size$)//$ pass validId array for input validation

call$$getName$($Ref String fName$[$count$],$ Ref String lName$[$count$])$

wage $=$ call$$getWage$()$

$$

$//$ Writes employee record to file

$//$ Writes one record to file at a time

write employeeData idNum$[$count$],$ firstName$[$count$],$ lastName$[$count$],$ wage$[$count$]$

$$

$//$ Checks if user would like to add more employee records

continue $=$checkContinue$()$

$$

if continue $==$ true

$$ count $=$ count $+1$

$\}//$ End of while loop

$$

$//$ Closes the output file

Close employeeData

$$

$\}//$ End of main$()$

$$

$$

$//$ Dear students, your role is to write the pseudo code for the functions

$$

$//$ Functions you need to write

$$

String$$getId$($String validID, size$)$

$//$ validID is the arrayName, size is the size of array

$//$ This function returns a valid employee ID

$//$ Thid function gets an employee data and validate it by doing the sequential search on validID $//$ array

$$

getName$($Ref String fName$[$index$],$ Ref String lName$[$index$])$

$//$ get first name and last name.$$ No validation needed

$$

Real$$getWage$()$

$//$ Returns the wage.$$ This function validates the wage.$$ It should be greater than $0$ and less than or equal to $45\mathrm{.}50$ dollars.

$$

$$

Boolean$$checkContinue$()$

$//$ Asks the user whether to continue.$$ Returns true or false

$$

Tips for Final Project

For #$2$ Problem

$$

$$

$//$ Pseudo$-$code for opening $$employees$.$dat$$

declare InputStream employeeData

Open employeeData with "employees.dat"

$$

$//$ Pseudo code for closing the input stream $($input file$)$

close employeeData

$$

$//$ Pseudo code for reading data from the input stream

Read EmloyeesData employeeID

$//$ Pseudo code for write a prompt, a tab or data to the report $($screen$)$

Print $$Enployee ID:$,$ Tab, Tab, Tab, employeeID

$//$ Pseudo code for writing a string literal with center justification to the report $($screen$)$

Print Center$-$Justity$($Enployee Report$)$

$$

$$

$//$ Follow the following control sequence in main$()$ and add your code

main$()$

$\{$

$//$ Variable declarations

$//$ Add code

$$

$//$ Opening employees.dat

$//$ Add code

$$

$//$ Printing report header

call$$printHeader$()$

$$

$//$ Reads and prints employee records until end of file is reached

$$

while$($ NOT$($ eof$($employeeData$)))$

$\{$

$//$ Read one record from employeeData

$//$ Add code

$$

$//$ Prints one record

call$$printRecord$($ idNum, firstName, lastName, wage$)$

$\}$

close employeeData

$\}$

$$

$//$ Prints header of the report in the required format

module$$printHeader$()$

$\{$

$//$pageCenter$$function: places string on horizontal center of page

$//$horizontalLine$$function: creates horizontal line across page

$//$ Add code for this module

$//$

$//$

$\}$

$$

$//$ Prints employee records in the required format

module$$printRecord$($string idNum, string firstName, string lastName, real wage$)$

$\{$

$//$ Add code for this module

$//$

$\}$
