Question: Create an Activity on Node Diagram for the following Activity List. Also, complete the Successor Column. table [ [ Activity , Predecessor,Successor ] ,

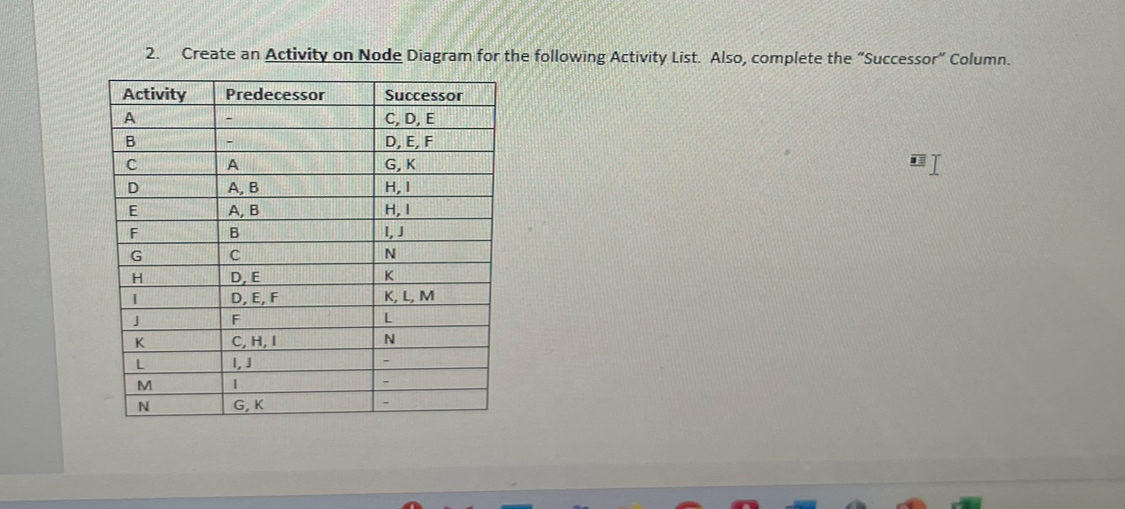

Create an Activity on Node Diagram for the following Activity List. Also, complete the "Successor" Column.
\table[[Activity,Predecessor,Successor],[A,-,C, D, E],[B,-,D, E, F],[C,A,G, K],[D,A, B,H, I],[E,A, B,H, I],[F,B,I, J],[G,C,N],[H,D, E,K],[I,D, E, F,K, L, M],[J,F,L],[K,C, H, I,N],[L,I, J,-],[M,I,-],[N,G, K,-]]
 Create an Activity on Node Diagram for the following Activity List.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
