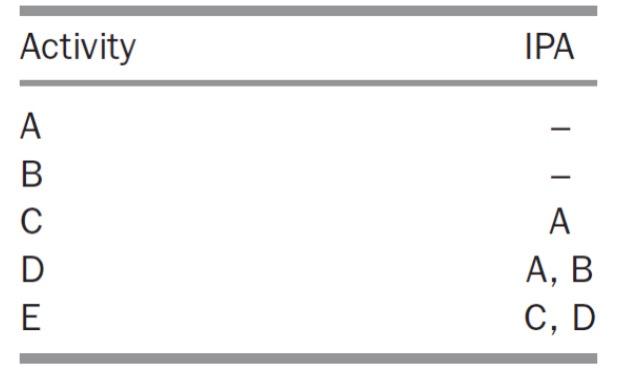

Question: Create an Arror (AOA) and Node (AON) disgram for the following: Activity IPA A B C D E A A, B C, D Activity IPA

Create an Arror (AOA) and Node (AON) disgram for the following:
Create an Arror (AOA) and Node (AON) disgram for
Create an Arror (AOA) and Node (AON) disgram for

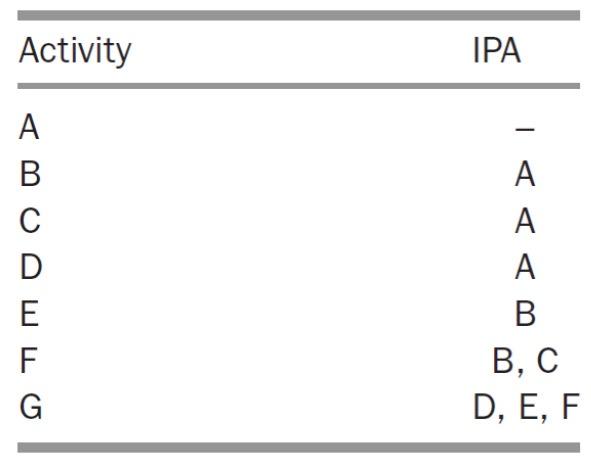

Activity IPA A B C D E A A, B C, D Activity IPA A B D E F G A A A B B, C D, E, F

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
