Question: cross section. 2 . ( 3 0 points ) A box beam is made by nailing together four boards in the configuration shown. The beam

cross section.

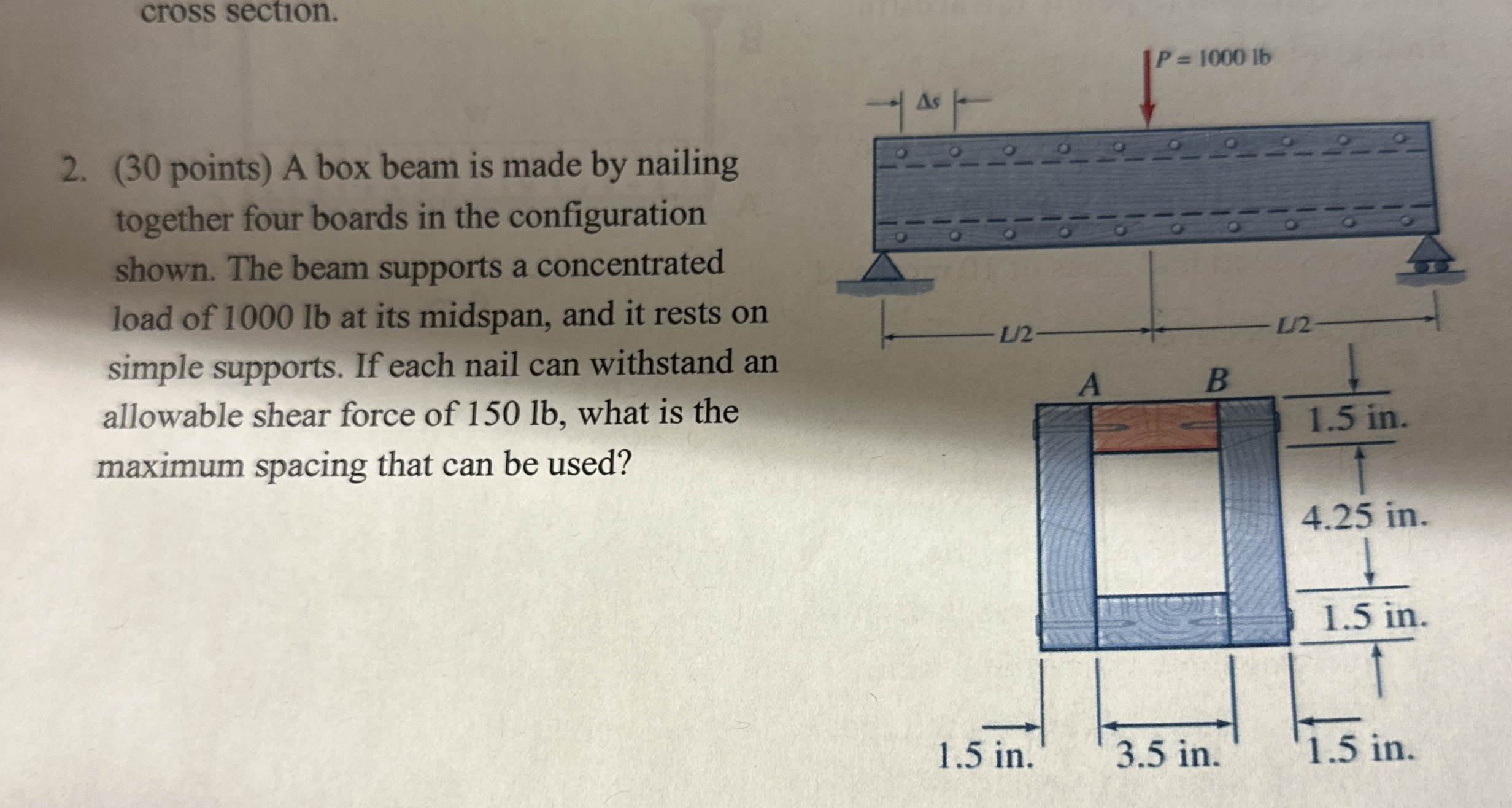

2.(30 points) A box beam is made by nailing together four boards in the configuration shown. The beam supports a concentrated load of 1000 lb at its midspan, and it rests on simple supports. If each nail can withstand an allowable shear force of 150 lb , what is the maximum spacing that can be used?
cross section. 2 . ( 3 0 points ) A box beam is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
