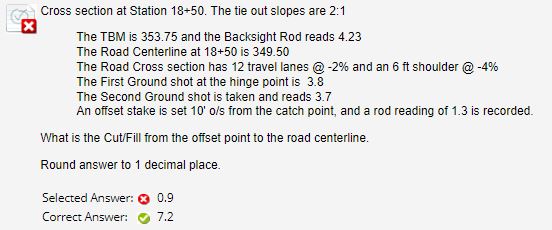

Question: Cross section at Station 1 8 + 5 0 . The tie out slopes are 2 : 1 The TBM is 3 5 3 .

Cross section at Station 18+50. The tie out slopes are 2:1
The TBM is 353.75 and the Backsight Rod reads 4.23
The Road Centerline at 18+50 is 349.50
The Road Cross section has 12 travel lanes @ -2% and an 6ft shoulder @-4%
The First Ground shot at the hinge point is 3.8
The Second Ground shot is taken and reads 3.7
An offset stake is set 10'os from the catch point, and a rod reading of 1.3 is recorded.
What is the Cut/Fill from the offset point to the road centerline.
Round answer to 1 decimal place.
Selected Answer: (3)0.9
Correct Answer:
7.2
