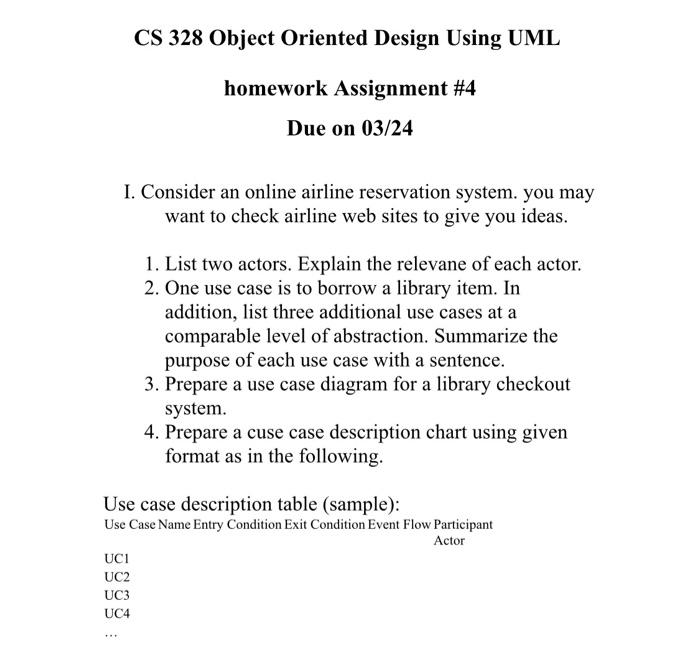

Question: CS 328 Object Oriented Design Using UML homework Assignment #4 Due on 03/24 I. Consider an online airline reservation system. you may want to check
CS 328 Object Oriented Design Using UML homework Assignment #4 Due on 03/24 I. Consider an online airline reservation system. you may want to check airline web sites to give you ideas. 1. List two actors. Explain the relevane of each actor. 2. One use case is to borrow a library item. In addition, list three additional use cases at a comparable level of abstraction. Summarize the purpose of each use case with a sentence. 3. Prepare a use case diagram for a library checkout system. 4. Prepare a cuse case description chart using given format as in the following. Use case description table (sample): Use Case Name Entry Condition Exit Condition Event Flow Participant Actor UCI UC2 UC3 UC4
Step by Step Solution
There are 3 Steps involved in it
Get step-by-step solutions from verified subject matter experts
