CS $530$: Developing User Interfaces

Assignment $2$

Goals

This assignment asks you to continue developing your web site for $$Drexel Bikes$,$

specifically in adding several features to make it a more realistic site$$receiving data

from a live database and allowing the user to view and change this information.

Assignment

The implementation of our $$Drexel Bikes$$ web site for Assignment $1$ built the basic

styling and navigation bar for the site, and added a page $$Our Bikes$$ where the user

could see the list of available bikes. In this assignment, we will enhance this site to

include a live SQLite database.

To begin, please take your site from Assignment $1$ and copy it into a new directory, a$2.$

Please note that, for this assignment, we will only be grading the parts relevant to the

current assignment and not those from Assignment $1$; thus, if you didn$$t quite get

everything working correctly in the first assignment, you don$$t need to worry about that

functionality$$please just focus on the functionality for this assignment.

Implementation Setup

To start this assignment, first please download the bikes.csv file that comes with the

assignment. This file contains CSV data for the bike database, with the following fields

$($in this order$)$:

$$ id $$ text $($cannot be null$)$

$$ name $$ text $($cannot be null$)$

$$ wheels $$ integer

$$ size $--$ integer

$$ motor $$ integer $(0$ or $1)$

$$ folding $$ integer $(0$ or $1)$

$$ image $$ text

$$ available $$ integer

The meaning of each field is the same as in Assignment $1.$

Given this file, create a SQLite database bikes.db that contains the above fields as

columns in the database, and import the data in bikes.csv$.$ To do this, please create a

text file create$\_$db$.$txt with the SQLite command$-$line commands you used to create and

populate the database, and put this file and the bikes.csv file in a folder $/$a$2/$dev $.($This

folder will not do anything during runtime; it simply allows us to see how you

constructed your database.$)$ At the end of this process, you should have a SQLite

database bikes.db that will serve as the back$-$end data storage for your system.

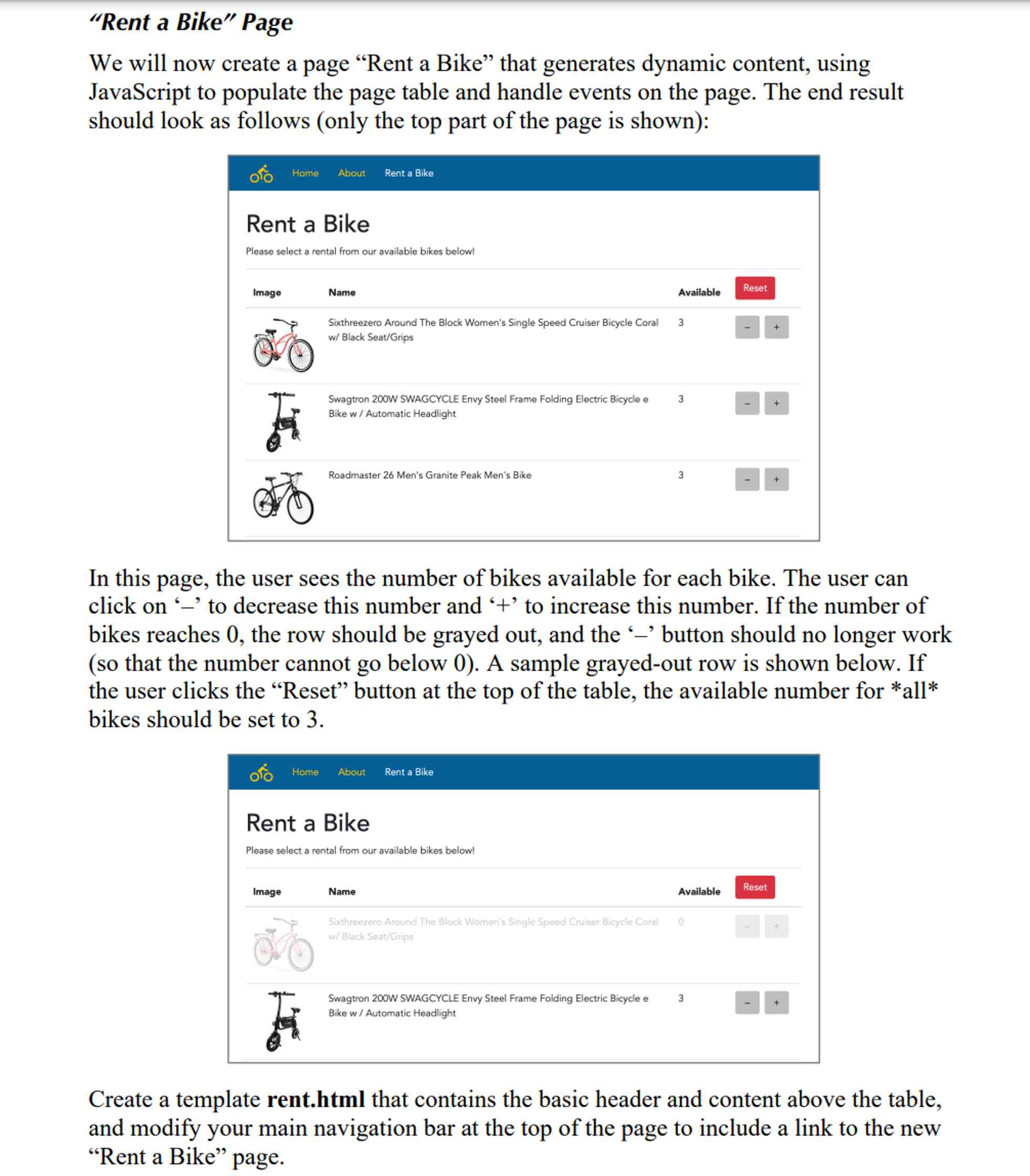

$$Rent a Bike$$ Page

We will now create a page $$Rent a Bike$$ that generates dynamic content, using

JavaScript to populate the page table and handle events on the page. The end result

should look as follows $($only the top part of the page is shown$)$:

In this page, the user sees the number of bikes available for each bike. The user can

click on $$ to decrease this number and $+$ to increase this number. If the number of

bikes reaches $0,$ the row should be grayed out, and the $$ button should no longer work

$($so that the number cannot go below $0).$ A sample grayed$-$out row is shown below. If

the user clicks the $$Reset$$ button at the top of the table, the available number for $*$all$*$

bikes should be set to $3.$

Create a template rent.html that contains the basic header and content above the table,

and modify your main navigation bar at the top of the page to include a link to the new

$$Rent a Bike$$ page.

Next, create a file static$/$js$/$rentView$.$js that builds the $$view$$ for this page, namely the

main table that includes all the bikes with their availability. We recommend creating a

JavaScript object RentView, using function RentView$(..)\{..\}$ and then instantiating

the object with new RentView$(..).$ In this object, you can implement the necessary

functionality to: $(1)$ load data from the server, $(2)$ change the availability of a given

bike, and $(3)$ reset all bikes to have the same availability $($namely $3).$

For each of these functions, you will also need to implement the corresponding

functionality on the server side in the run.py file. Specifically, you should define the

following API URLs with associated AJAX functionality:

$/$api$/$get$\_$bikes : a GET request that returns all bikes in the database;

$/$api$/$update$\_$bike : a POST request with two arguments $$ a bike ID and a

number available $$ that updates that particular bike to have that given number

available;

$/$api$/$reset$\_$bikes : a POST request with one argument $$ a number available $$

that resets all bikes that have that given number available.

$($Recall that the functions that modify the database should be done using POST requests

instead of GET requests.$)$

Also, please note that for the grayed$-$out rows, you should add a class unavailable to

the table row, and then in your main.css file, give this class an opacity of $0\mathrm{.}25.$ You will

also need to separately disable the $$ button, since graying out the row does not affect

the functionality of the button.

Your final page should provide all the functionality of the buttons described above, and

since you have a database back end, all data should remain the same even after

reloading the page.

Documentation

It is expected that all code written for this assignment is properly commented where

needed, especially in places where you have made particular choices about data

structures and$/$or algorithms to employ. Also, please add the following identification

header to every file you create:

# Your Name, Your Email

#CS$530$:DUI, Assignment$[$#$]$

$($or whatever commenting syntax is appropriate for the file at hand$)$
