Question: Current Attempt in Progress ( Force on plane surface ) A gate having the triangular shape shown in the figure below is located in the

Current Attempt in Progress

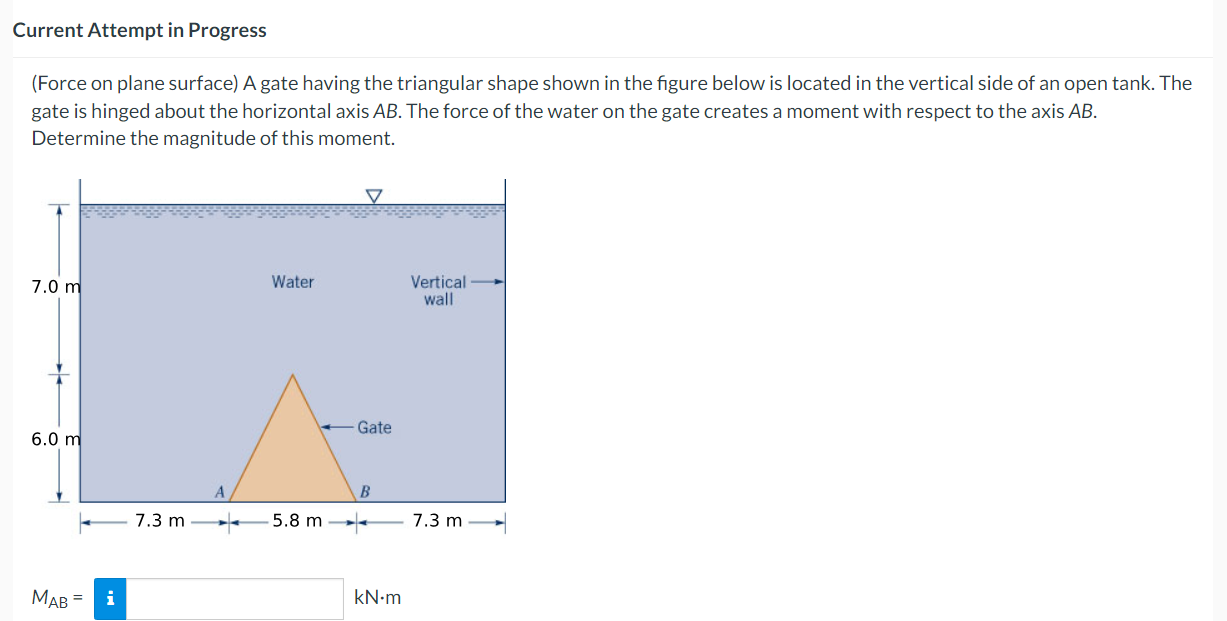

(Force on plane surface) A gate having the triangular shape shown in the figure below is located in the vertical side of an open tank. The
gate is hinged about the horizontal axis AB. The force of the water on the gate creates a moment with respect to the axis AB.
Determine the magnitude of this moment.
MAB=kN*m
Current Attempt in Progress ( Force on plane

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
