Question: CVE 2 2 3 Fall 2 0 1 4 - Exam II 0 9 1 2 ? 2 0 1 4 Dr . Farid Abed

CVE 223
Fall 2014- Exam II
0912?2014
Dr. Farid Abed

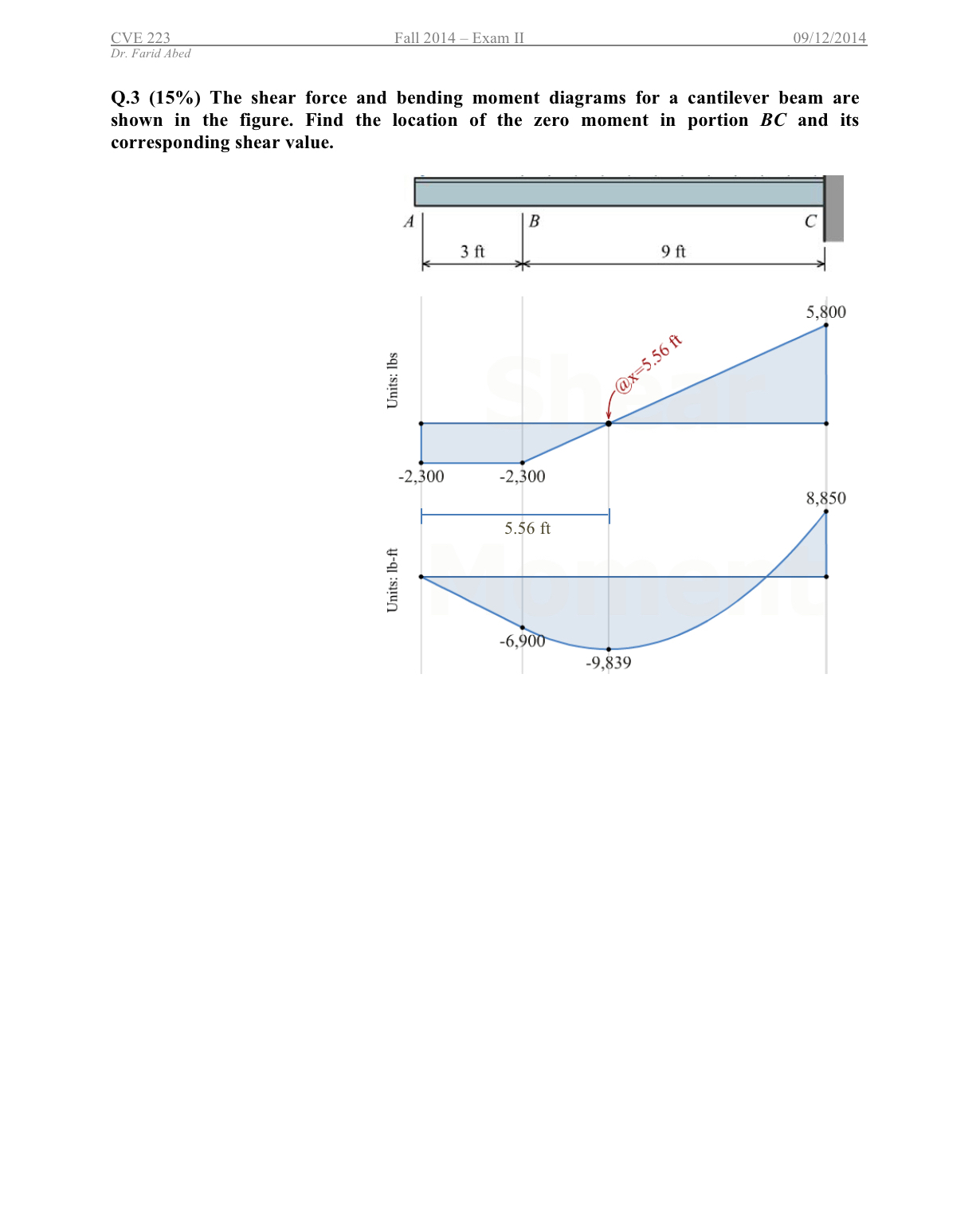

Q.3(15%) The shear force and bending moment diagrams for a cantilever beam are shown in the figure. Find the location of the zero moment in portion BC and its corresponding shear value.
CVE 2 2 3 Fall 2 0 1 4 - Exam II 0 9 1 2 ? 2 0 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
