CVLE $211-$ ENGINEERING MECHANICS$-$I

Name & Surname:

$12\mathrm{.}06\mathrm{.}2024$

Student No:

Group:

Duration: $90$ minutes

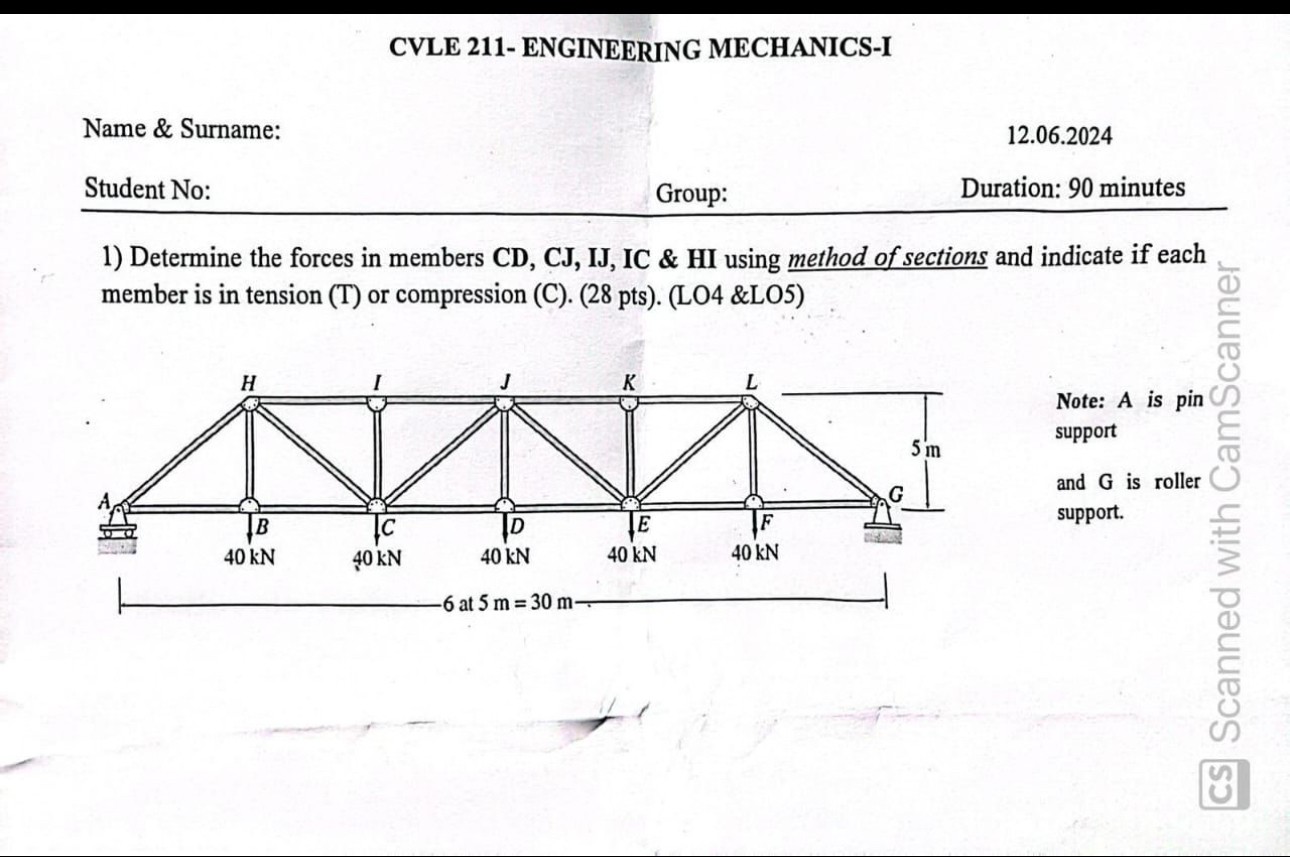

Determine the forces in members CD$,$ CJ$,$ IJ$,$ IC & HI using method of sections and indicate if each member is in tension $($T$)$ or compression $($C$).(28$ pts $).($LO$4$ &LO$5)$

Note: $A$ is Roller support

and G is

CVLE $211-$ ENGINEERING MECHANICS$-$I

Name & Surname:

$12\mathrm{.}06\mathrm{.}2024$

Student No:

Group:

Duration: $90$ minutes

Determine the forces in members CD$,$ CJ$,$ IJ$,$ IC & HI using method of sections and indicate if each member is in tension $($T$)$ or compression $($C$).(28$ pts $).($LO$4$ &LO$5)$

Note: $A$ is In roller support

and G is in pin support. support.
