Question: D), = 10 cm D2 = 6 cm (a) In figure below the flowing fluid is Hydrogen at 20C. Neglect losses. If pl = 1600

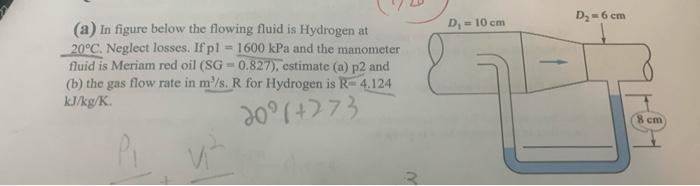

D), = 10 cm D2 = 6 cm (a) In figure below the flowing fluid is Hydrogen at 20C. Neglect losses. If pl = 1600 kPa and the manometer fluid is Meriam red oil (SG = 0.827), estimate (a) p2 and (b) the gas flow rate in m/s. R for Hydrogen is R-4.124 kJ/kg/K 20/+273 8 cm

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

P3.121 In Fig. P3.121 the flowing fluid is CO at 20C. Neglect losses. If P = 170 kPa and the manometer fluid is Meriam red oil (SG = 0.827), estimate (a) p2 and (b) the gas flow rate in m/h. P3.121 D...
