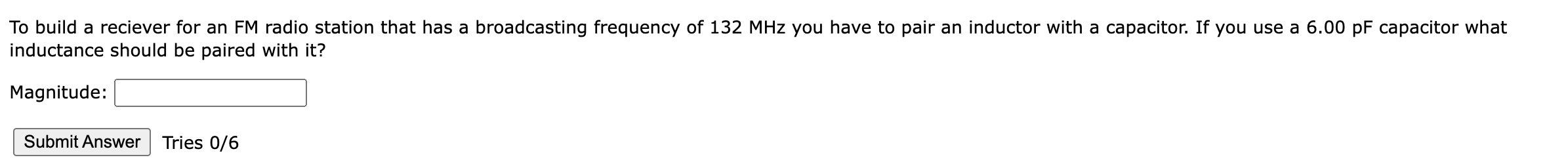

'd (A) 2.0 cm 0 ' (S) 0.0 0.02 A 2.00 cm diameter, 5.00 cm long solenoid has 92.0 turns. The current in the solenoid is shown. The maximum and the minimum current in the graph have the same magnitude which is 4.90 A. What is the potential difference across the solenoid. :1 Submit Answer Tries 0/6 To build a reciever for an FM radio station that has a broadcasting frequency of 132 MHz you have to pair an inductor with a capacitor. If you use a 6.00 pF capacitor what inductance should be paired with it? Magnitude: Submit Answer Tries 0/6 450 An electron travels through a magnetic field with a strength of 3.90 T and is traveling at a speed of 5.83x10 m/s. What is the z-component of the force on the electron as shown in the figure? z-component: 3.63X10^-12 NB X X X X X X X X X X In the figure provided, an antiproton (same properties as a proton except that q = -e) is moving in through electric and magnetic fields. If B = 2.01 T, E = 3.61x103 V/m and v = 139 m/s, what are the magnitude and direction of the antiproton's acceleration at this instant? Magnitude: 0.0000000000319 m/s^ Direction: O Down O Up O Left Right Submit Answer Incorrect. Tries 5/6 Previous Tries
