$($d$)$ What will be the Coriolis acceleration experienced oy Lind $\frac{?}{{?}_{?}}$ anonstrate how to get the

$($e$)$ Identify all the IC of the of the given mechanism and demonstrate

unknown velocities

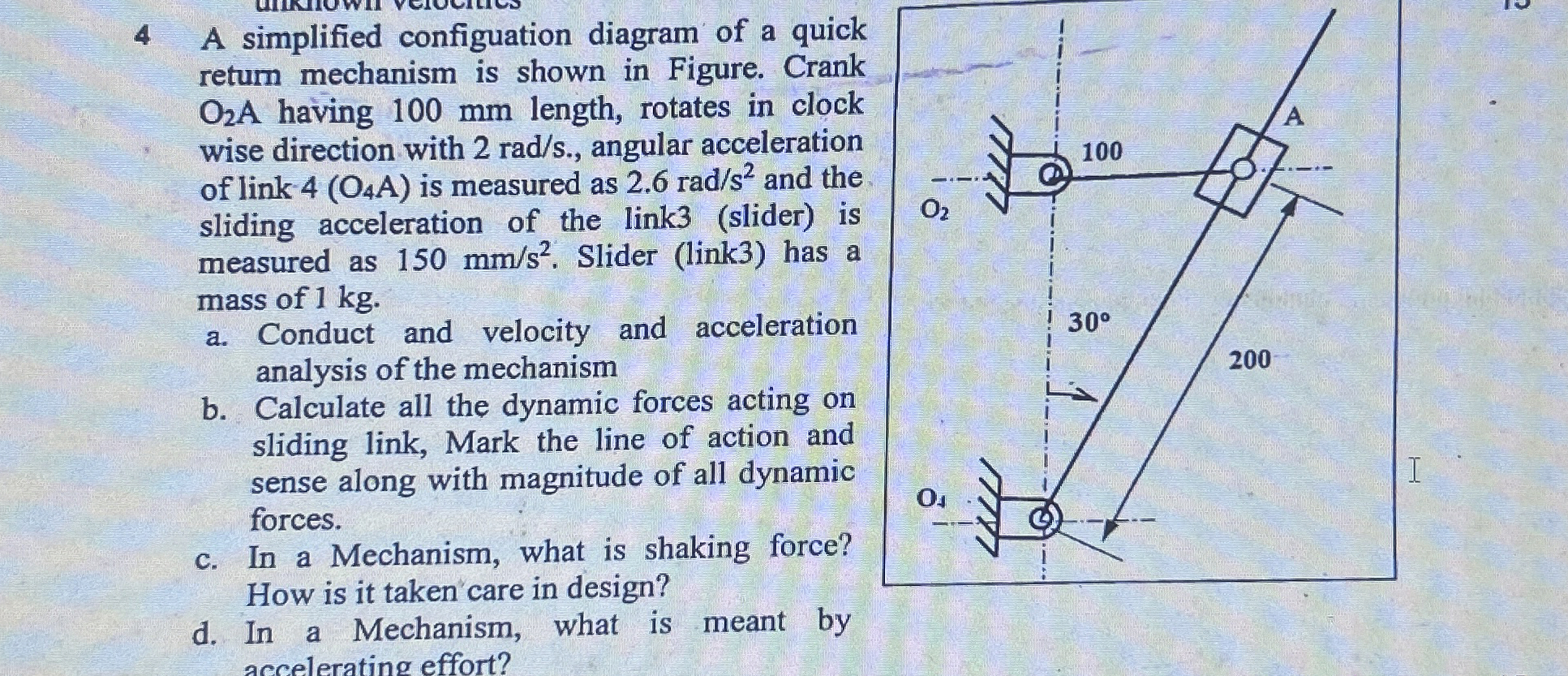

$4$ A simplified configuation diagram of a quick

return mechanism is shown in Figure. Crank

$O_2$A having $100$ mm length, rotates in clock

wise direction with $2ra\frac{d}{s}.,$ angular acceleration

of link $4(O_4(A))$ is measured as $2\mathrm{.}6ra\frac{d}{s^2}$ and the

sliding acceleration of the link $3($slider$)$ is

measured as $150m\frac{m}{s^2}.$ Slider $($link$3)$ has a

mass of $1$ kg $.$

a$.$ Conduct and velocity and acceleration

analysis of the mechanism

b$.$ Calculate all the dynamic forces acting on

sliding link, Mark the line of action and

sense along with magnitude of all dynamic

forces.

c$.$ In a Mechanism, what is shaking force?

How is it taken care in design?

d$.$ In a Mechanism, what is meant by

accelerating effort?

$5($a$)$ Design a four$-$bar mechanism to generate a function $y=sinx$ for $090.$ The

range of the output link may be chosen as $60$ while that of input crank be $120.$ Assume

three precision points that are to be obtained from Chebyshev spacing. Length of the

fixed link to be $52\mathrm{.}5$ mm long. Initial angular position of the crank is $105,$ and the

output link is $66.$ Identify the type of mechanism.

$($b$)$ Synthesize a mechanism to move coupler

AB successively through the three positions

shown using a graphical method. Assume

the dimensions given are in cm $.$ Calculate

the minimum and maximum transmission

angle and show the mechanism in those

positions.

Discuss the design features of a manual single$-$stitch sewing machine giving details of

various links systems. Support your discussion with a rough sketch showing the selection

of link system.

$4$ A simplified configuation diagram of a quick

return mechanism is shown in Figure. Crank

$O_2$A having $100$ mm length, rotates in clock

wise direction with $2ra\frac{d}{s}.,$ angular acceleration

of link $4(O_4(A))$ is measured as $2\mathrm{.}6ra\frac{d}{s^2}$ and the

sliding acceleration of the link$3($slider$)$ is

measured as $150m\frac{m}{s^2}.$ Slider $($link$3)$ has a

mass of $1$ kg $.$

a$.$ Conduct and velocity and acceleration

analysis of the mechanism

b$.$ Calculate all the dynamic forces acting on

sliding link, Mark the line of action and

sense along with magnitude of all dynamic

forces.

c$.$ In a Mechanism, what is shaking force?

How is it taken care in design?

d$.$ In a Mechanism, what is meant by
