Data:

(A1/A2)= 45|55

(B)= 22

(C)= 53

(D)= 81

(E)= 43

(F)= 18

(X)= Cumene

please answer the questions clearly q1 and q2

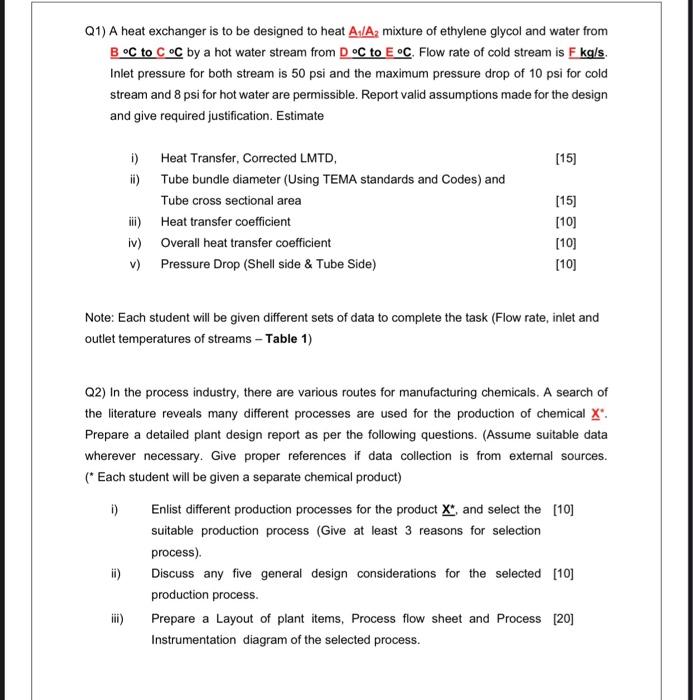

Q1) A heat exchanger is to be designed to heat A1/A2 mixture of ethylene glycol and water from BC to CC by a hot water stream from DC to EC. Flow rate of cold stream is Fkg/s. Inlet pressure for both stream is 50psi and the maximum pressure drop of 10 psi for cold stream and 8 psi for hot water are permissible. Report valid assumptions made for the design and give required justification. Estimate Note: Each student will be given different sets of data to complete the task (Flow rate, inlet and outlet temperatures of streams - Table 1) Q2) In the process industry, there are various routes for manufacturing chemicals. A search of the literature reveals many different processes are used for the production of chemical X. Prepare a detailed plant design report as per the following questions. (Assume suitable data wherever necessary. Give proper references if data collection is from external sources. ( Each student will be given a separate chemical product) i) Enlist different production processes for the product X, and select the [10] suitable production process (Give at least 3 reasons for selection process). ii) Discuss any five general design considerations for the selected [10] production process. iii) Prepare a Layout of plant items, Process flow sheet and Process [20] Instrumentation diagram of the selected process
