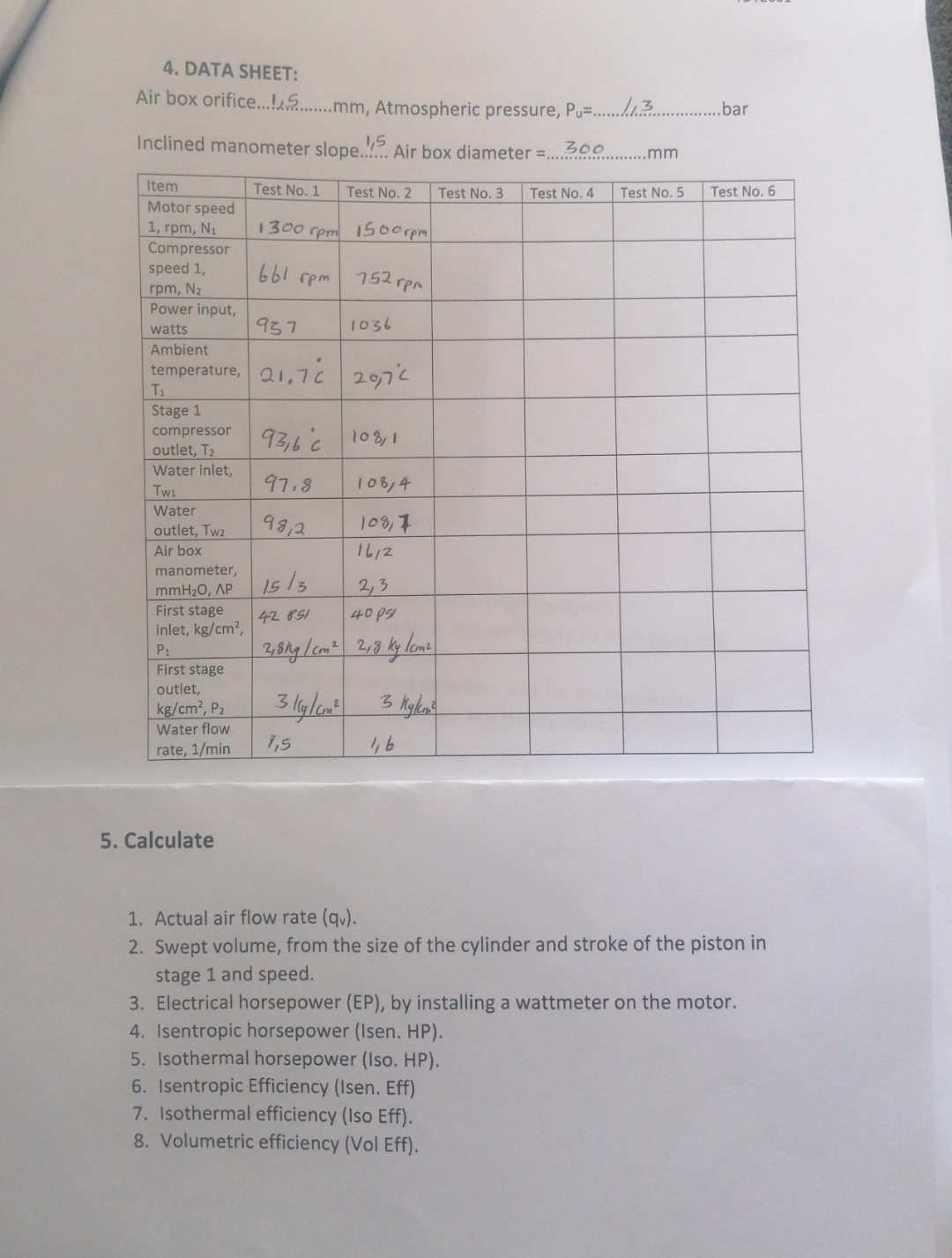

DATA SHEET:

Air box orifice..$\mathrm{.}1,5....q,$ mm $,$ Atmospheric pressure, $P_u=.q,$ bar

Inclined manometer slope. $q,$ Air box diameter $=.q,300$ mm

$5.$ Calculate

Actual air flow rate $(q_v).$

Swept volume, from the size of the cylinder and stroke of the piston in stage $1$ and speed.

Electrical horsepower $($EP$),$ by installing a wattmeter on the motor.

Isentropic horsepower $($Isen$.$ HP$).$

Isothermal horsepower $($Iso$.$ HP$).$

Isentropic Efficiency $($Isen$.$ Eff$)$

Isothermal efficiency $($Iso Eff$).$

Volumetric efficiency $($Vol Eff$).$
