Question: DC Circuit Chapter 19.2 Physics Find Req and I. starting from the top: 70k ohms, 20 k ohms, 40 k ohms, 40 k ohms, 20

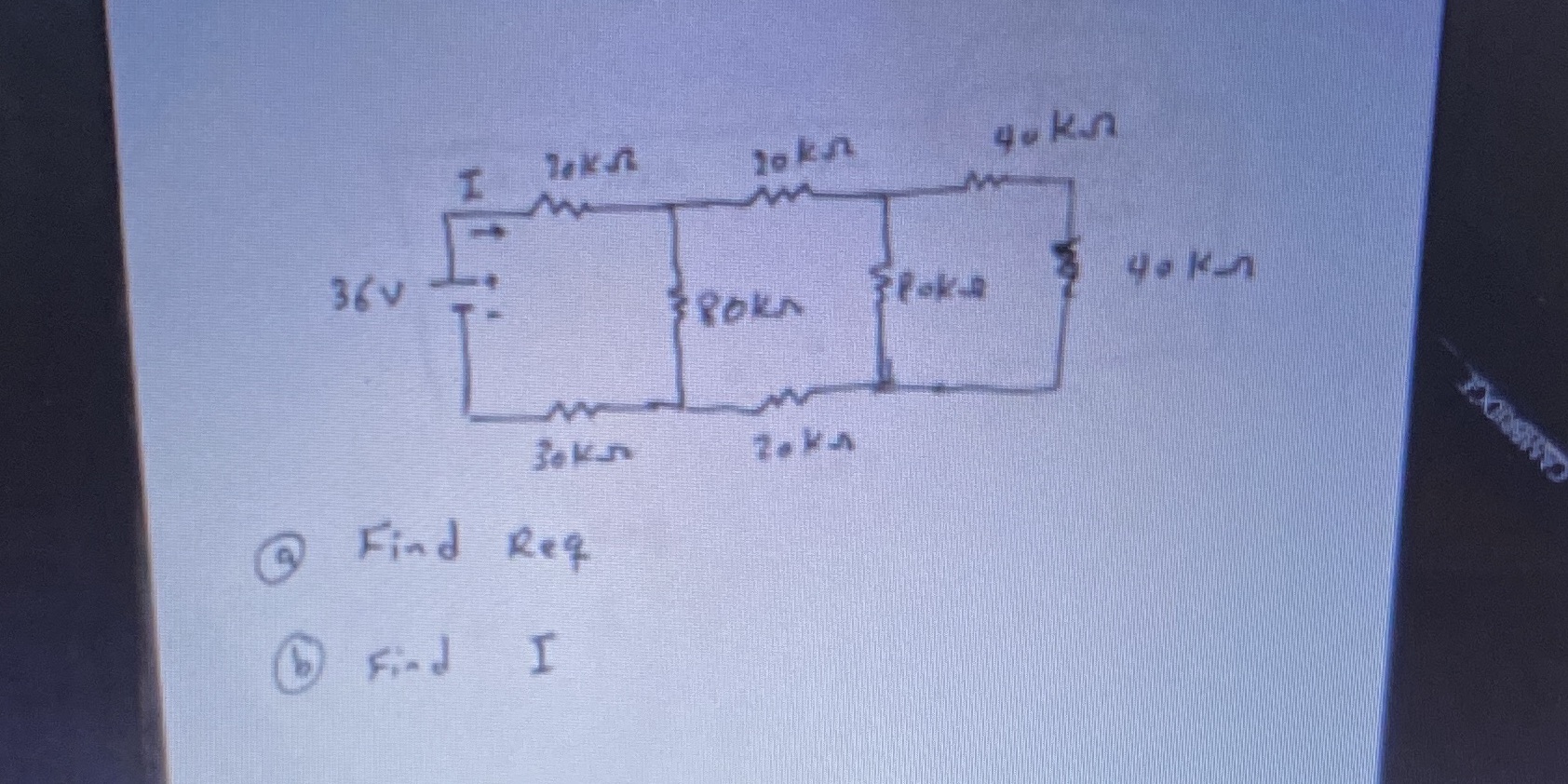

DC Circuit Chapter 19.2 Physics Find Req and I. starting from the top: 70k ohms, 20 k ohms, 40 k ohms, 40 k ohms, 20 k ohms, 30 k ohms, and the two middle are both 80 k ohms.(series and parallel circuits)

DC Circuit Chapter 19.2 Physics Find Req and I. starting from the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
