Question: Deflection in Beams - Appendix Method Determine the reaction force at ( B ) . The rectangular beam has a width of 2

Deflection in Beams - Appendix Method

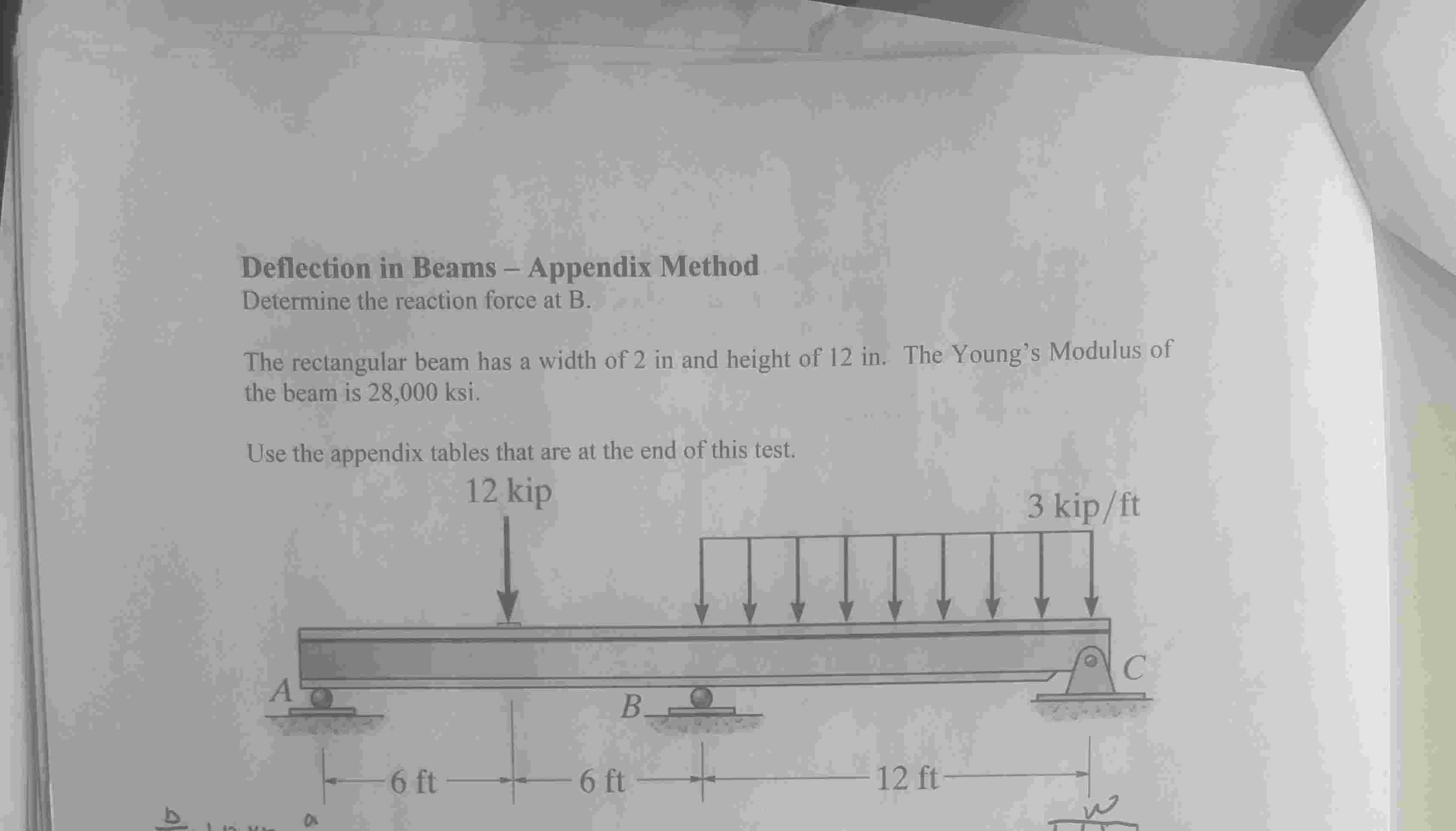

Determine the reaction force at \( B \).
The rectangular beam has a width of 2 in and height of 12 in . The Young's Modulus of the beam is \(28,000\mathrm{ksi}\).
Use the appendix tables that are at the end of this test.
Deflection in Beams - Appendix Method Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
