Question: Derive the transfer function H(s)/Q(s) for the liquid-level system of the below figure when (6) The tank level operates about the steady-state value of hs-3

Derive the transfer function H(s)/Q(s) for the liquid-level system of the

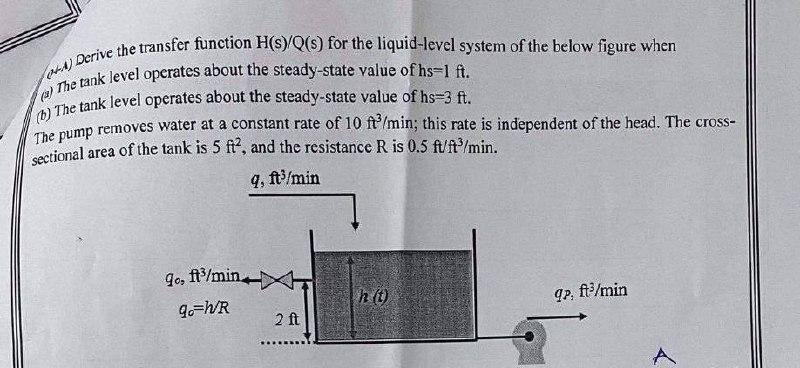

Derive the transfer function H(s)/Q(s) for the liquid-level system of the below figure when (6) The tank level operates about the steady-state value of hs-3 A. a) The tank level operates about the steady-state value of hs-1 ft. The pump removes water at a constant rate of 10 t/min; this rate is independent of the head. The cross- sectional area of the tank is 5 ft?, and the resistance R is 0.5 f/f/min. q, ft3/min 90, ftp/min 9.=W/R ht) 9p. ft3/min 2 ft

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Derive the transfer function H ( s )/ Q ( s ) for the liquid-level system of Fig. P51 when(a) The tank level operates about the steady-state value of hs 1 ft (b) The tank level operates about the...

Derive the transfer function H(s)/Q(s) for the liquid level system as shown in the fig.1, when (a) the tank level operates about the steady state value of hs =0.3 m. (b) the tank level operates about...

WA) Derive the transfer function H(S)/Q(s) for the liquid-level system of the below figure when a) The tank level operates about the steady-state value of hs=1 ft. The tank level operates about the...

Derive the transfer function H(s)/Q(s) for the liquid-level system of Fig. P5-1 when (a) The tank level operates about the steady-state value of hs = 1 ft (b) The tank level operates about the...

Derive the transfer function H(s)/Q(s) for the liquid-level system of Fig. P51 when (a) The tank level operates about the steady-state value of hs = 1 ft (b) The tank level operates about the...

Derive the transfer function H(s)/Q(s) for the liquid-level system of Fig. P5-1 when (a) The tank level operates about the steady-state value of hs = 1 ft (b) The tank level operates about the...

process systems analysis and control 5.1. Derive the transfer function H(s)/Q(s) for the liquid-level system of Fig. P5-1 when (a) The tank level operates about the steady-state value of hs=1ft (b)...

This is a subjective question, hence you have to wnte your answer in the Jext. Fleld gven below Derive the transter function H(s)Q (s) for the liquidtevel system in the below figure when a) The tank...
