Design a bit-sliced N-bit full adder from N one-bit full adders. Draw the block diagram of the full adder in the format given in question 3. Represent each gate with a square that is labeled with its type.

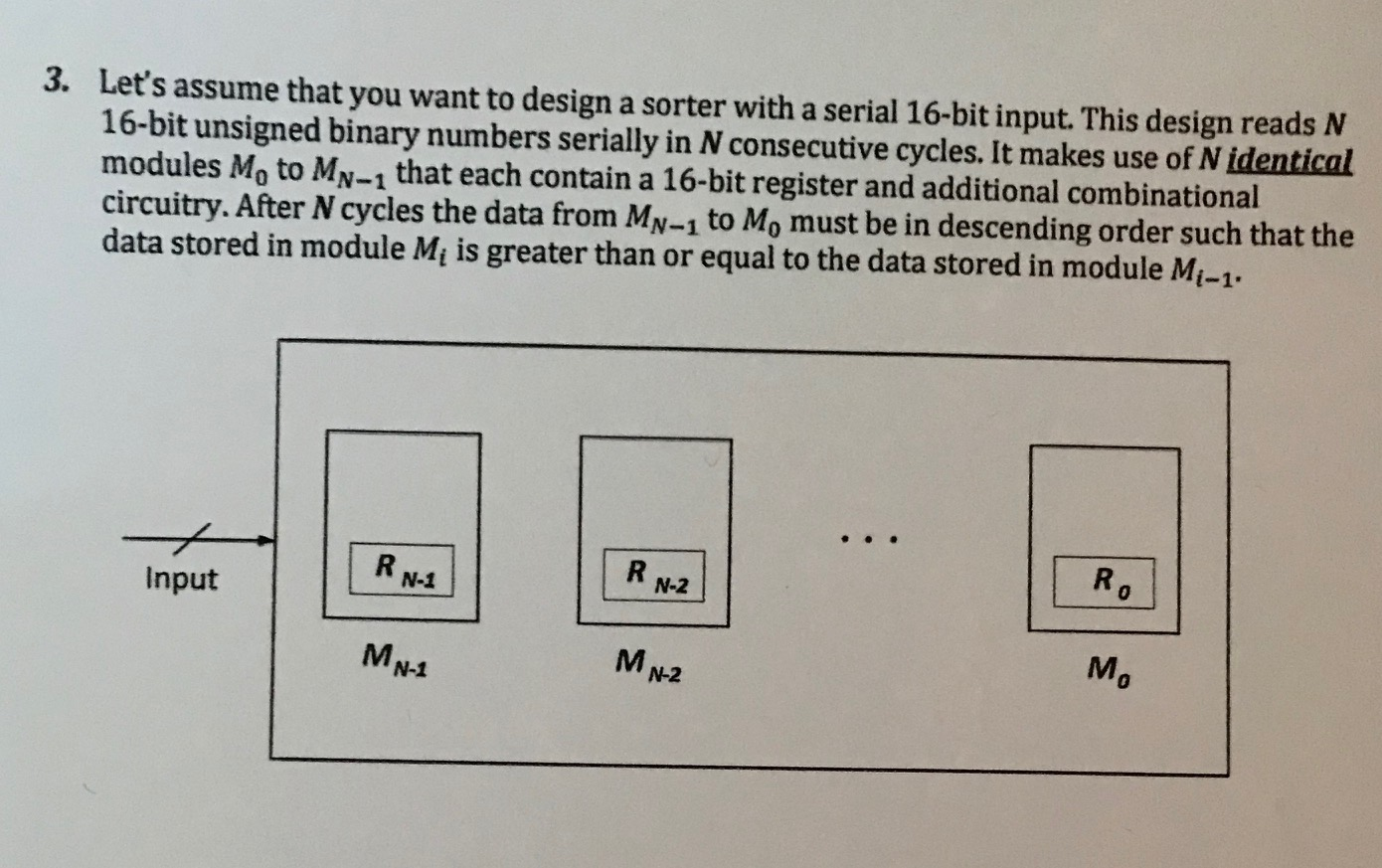

3. Let's assume that you want to design a sorter with a serial 16-bit input. This design reads N 16-bit unsigned binary numbers serially in N consecutive cycles. It makes use of N identical modules M, to My- that each contain a 16-bit register and additional combinational circuitry. After N cycles the data from MN-1 to Mo must be in descending order such that the data stored in module M is greater than or equal to the data stored in module Mi-1. R BO RN-2 Input N-1 MN-1 MN-2
