Question: Design a four bit arithmetic and logic circuit ( ALU ) with four selection variables S 0 , S 1 , S 2 and S

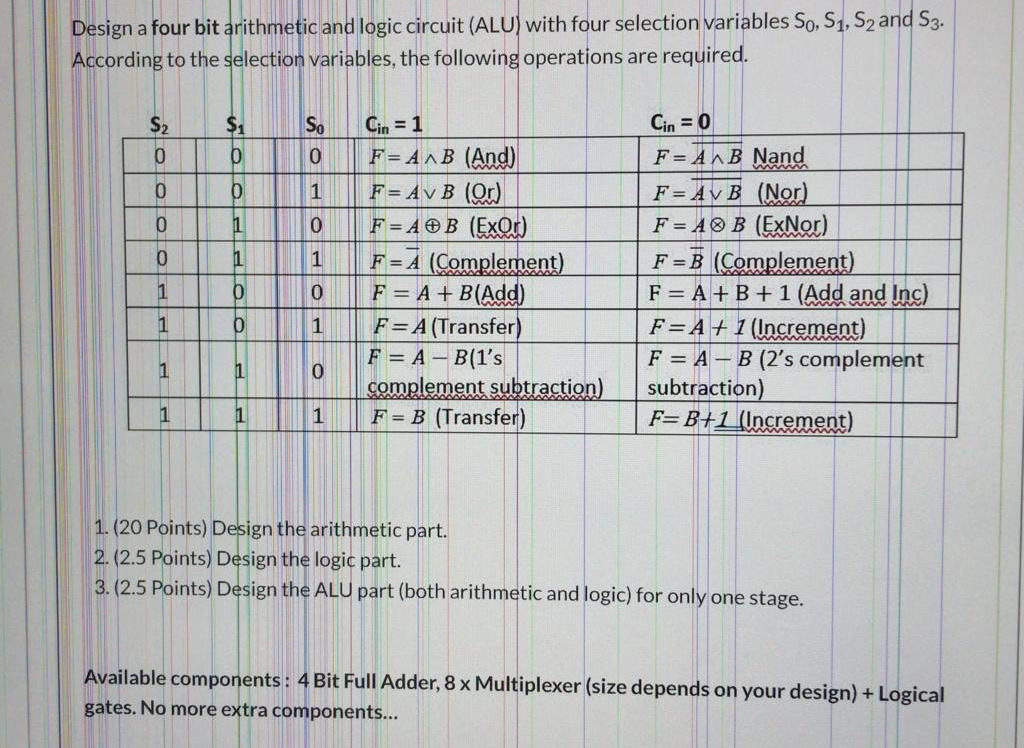

Design a four bit arithmetic and logic circuit (ALU) with four selection variables S0,S1,S2 and S3. According to the selection variables, the following operations are required.
\table[[S2,S1,S0,Cin=1,Cin=0
Design a four bit arithmetic and logic circuit (ALU) with four

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
